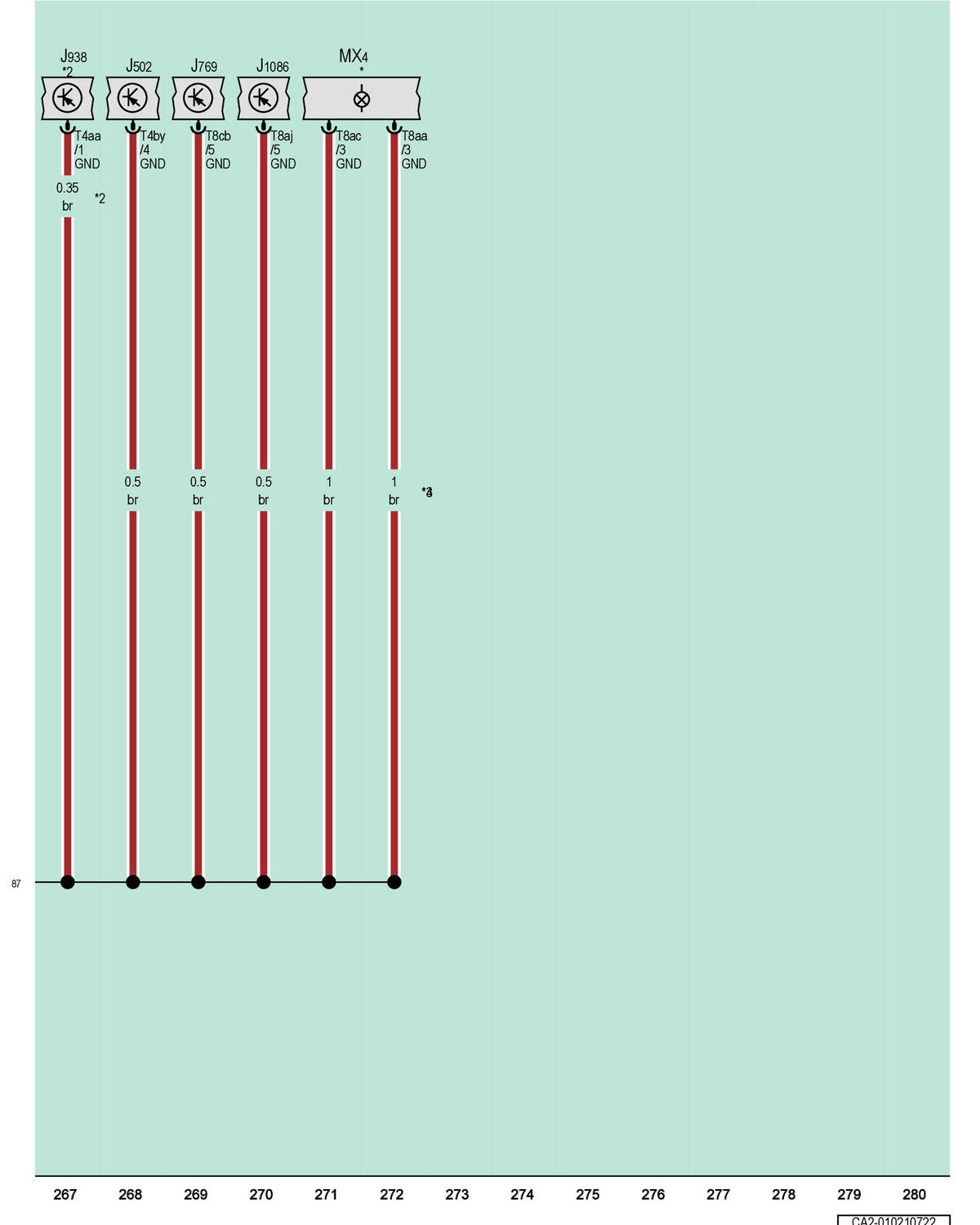

Tire Pressure Monitoring Control Module, Lane Change Assistance Control Module, Power Rear Lid Opening Control Module, Blind Spot Detection Control Module, Right Tail Lamp

Courtesy of AUDI OF AMERICA, LLC

J502

Tire Pressure Monitoring Control Module

J769

Lane Change Assistance Control Module

J938

Power Rear Lid Opening Control Module

J1086

Blind Spot Detection Control Module

MX4

Right Tail Lamp

T4aa

4-Pin Connector, Black

T4by

4-Pin Connector, Gray

T8aa

8-Pin Connector, Brown

T8ac

8-Pin Connector, Green

T8aj

8-Pin Connector, Black

T8cb

8-Pin Connector, Black

87

Ground Connection 2 (in Rear Wiring Harness)

*

Different Connector Color Possible

*2

For Vehicles with Sensor-Controlled Power Rear Lid Opening

*3

For Vehicles Without LED Tail Lamps

*4

For Vehicles with LED Tail Lamps
