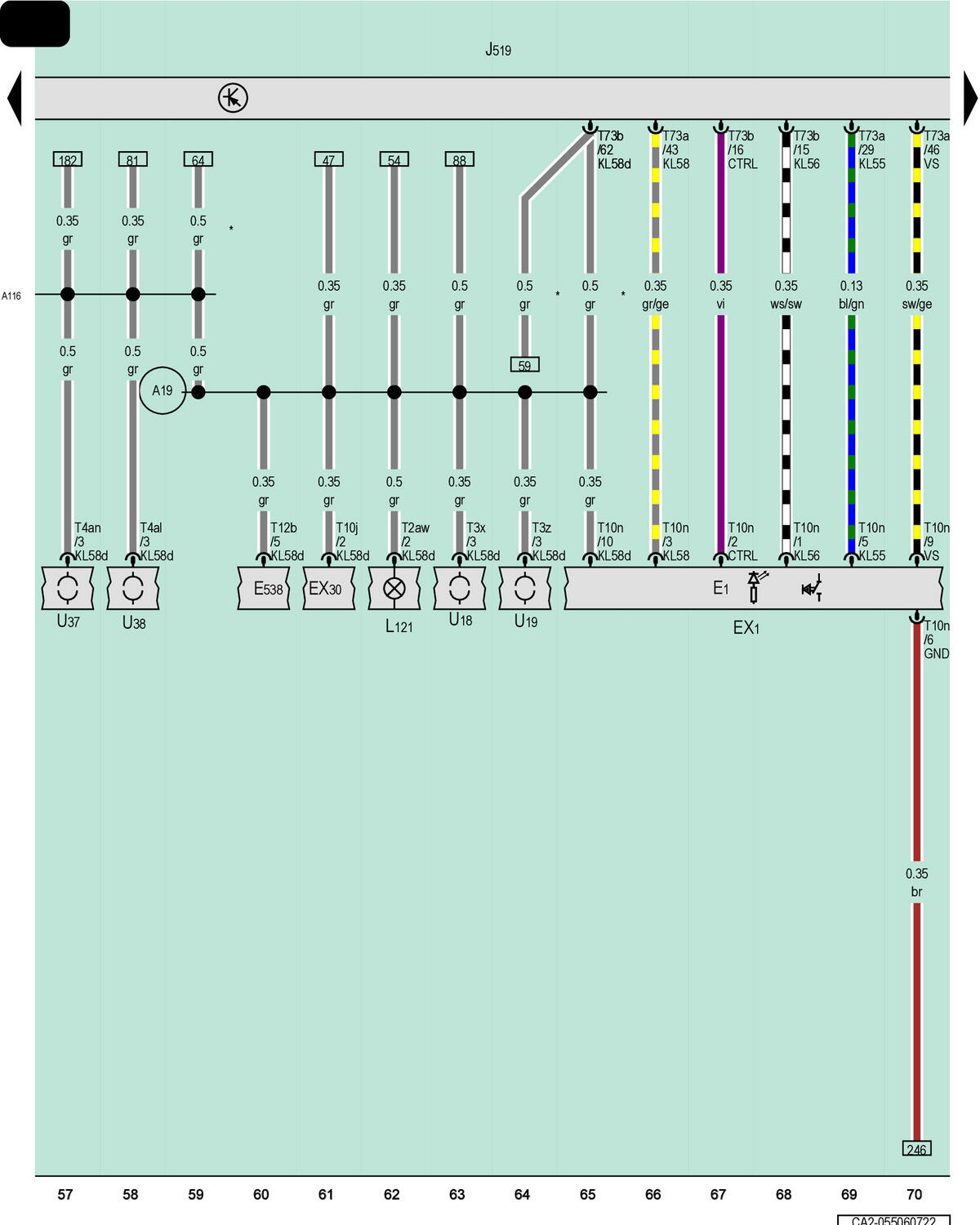

Electromechanical Parking Brake Button, Vehicle Electrical System Control Module, CUPHOLDER Illumination Bulb

GWWCA2-055060722Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX1

Rotary Light Switch

E1

Light Switch

EX30

Center Console Switch Module 2

E538

Electromechanical Parking Brake Button

J519

Vehicle Electrical System Control Module

L121

Cupholder Illumination Bulb

T2aw

2-Pin Connector, Black

T3x

3-Pin Connector, Naturally Cloudy

T3z

3-Pin Connector, Naturally Cloudy

T4al

4-Pin Connector, Brown

T4an

4-Pin Connector, Brown

T10j

10-Pin Connector, Black

T10n

10-Pin Connector, Red

T12b

12-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

U18

12 V Socket 2

U19

12 V Socket 3

U37

USB Charging Socket 1

U38

USB Charging Socket 2

A19

Connection 58d (in Instrument Panel Wiring Harness)

A116

Connection 58d (in Instrument Panel Wiring Harness) 2

Depending on Equipment
