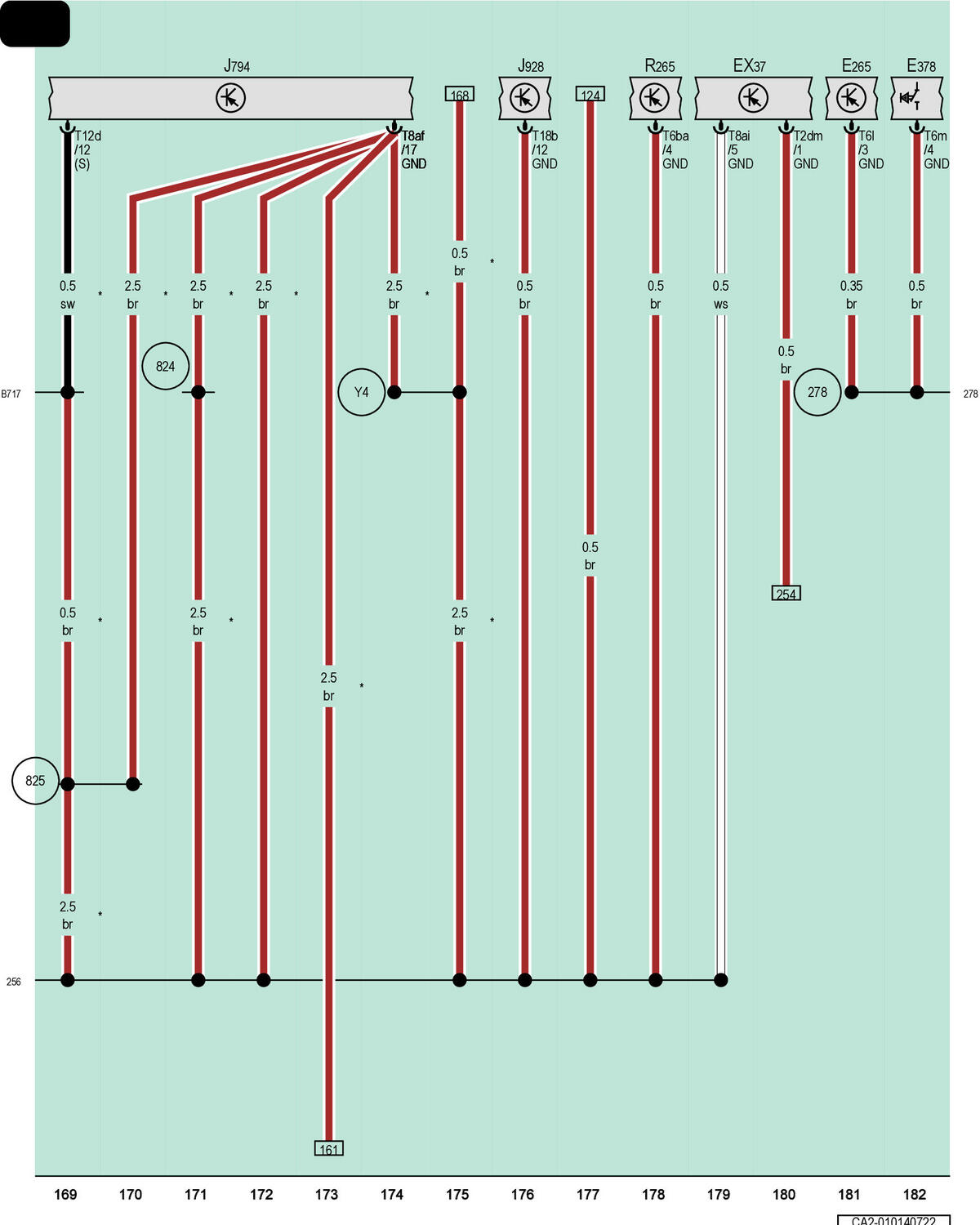

Rear Lid Handle, Rear A/C Display Control Head, Start System Button, Information Electronics Control Module 1, Peripheral Camera Control Module, Storage Compartment With Cell Phone Interface

GWWCA2-010140722Courtesy of AUDI OF AMERICA, LLC

EX37

Rear Lid Handle

E265

Rear A/C Display Control Head

E378

Start System Button

J794

Information Electronics Control Module 1

J928

Peripheral Camera Control Module

R265

Storage Compartment with Cell Phone Interface

T2dm

2-Pin Connector, Gray

T6ba

6-Pin Connector, Black

T6l

6-Pin Connector, Black

T6m

6-Pin Connector, Black

T8af

8-Pin Connector, Black

T8ai

8-Pin Connector, Black

T12d

12-Pin Connector, Blue

T18b

18-Pin Connector, Black

256

Ground Connection 2 (in Radio Wiring Harness)

278

Ground Connection 4 (in Interior Wiring Harness)

824

Ground Connection 17 (in Interior Wiring Harness)

825

Ground Connection 18 (in Interior Wiring Harness)

B717

Parking Aid Connection (in Main Wiring Harness)

Y4

Connection 31L (in Interior Lamp Wiring Harness)

Depending on Equipment
