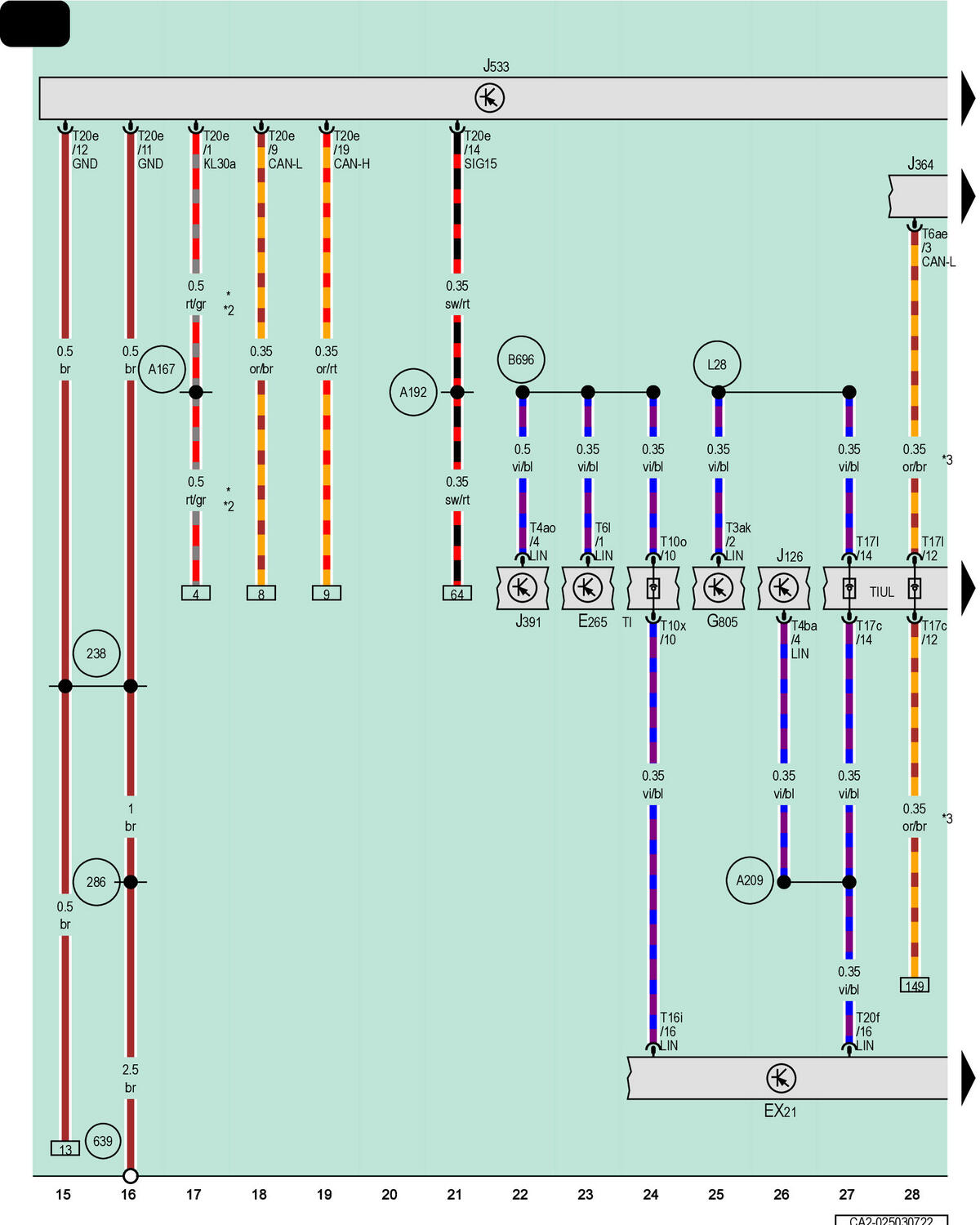

Heater And A/C Controls, Refrigerant Circuit Pressure Sensor, Fresh Air Blower Control Module, Auxiliary Heater Control Module
EX21
Heater and A/C Controls
E265
Rear A/C Display Control Head
G805
Refrigerant Circuit Pressure Sensor
J126
Fresh Air Blower Control Module
J364
Auxiliary Heater Control Module
J391
Rear Fresh Air Blower Control Module
J533
Data Bus on Board Diagnostic Interface
T3ak
3-Pin Connector, Black
T4ao
4-Pin Connector, Black
T4ba
4-Pin Connector, Black
T6ae
6-Pin Connector
T6l
6-Pin Connector, Black
T10o
10-Pin Connector, Black
T10x
10-Pin Connector, Black
T16i
16-Pin Connector, Black
T17c
17-Pin Connector, Red
T17l
17-Pin Connector, Red
T20e
20-Pin Connector, Black
T20f
20-Pin Connector, Black
TI
Coupling Point in Interior
TIUL
Coupling Point in Interior, Bottom Left
238
Ground Connection 1 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
A167
Positive Connection 3 (30a) (in Instrument Panel Wiring Harness)
A192
Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
A209
LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
B696
A/C System Connection 1 (in Main Wiring Harness)
L28
Connection (in Climatronic Engine/Motor Compartment Wiring Harness)
*
For Vehicles with Engine Remote Start
*2
For Vehicles with Engine Remote Start Setup
*3
For Vehicles with a Parking Heater
