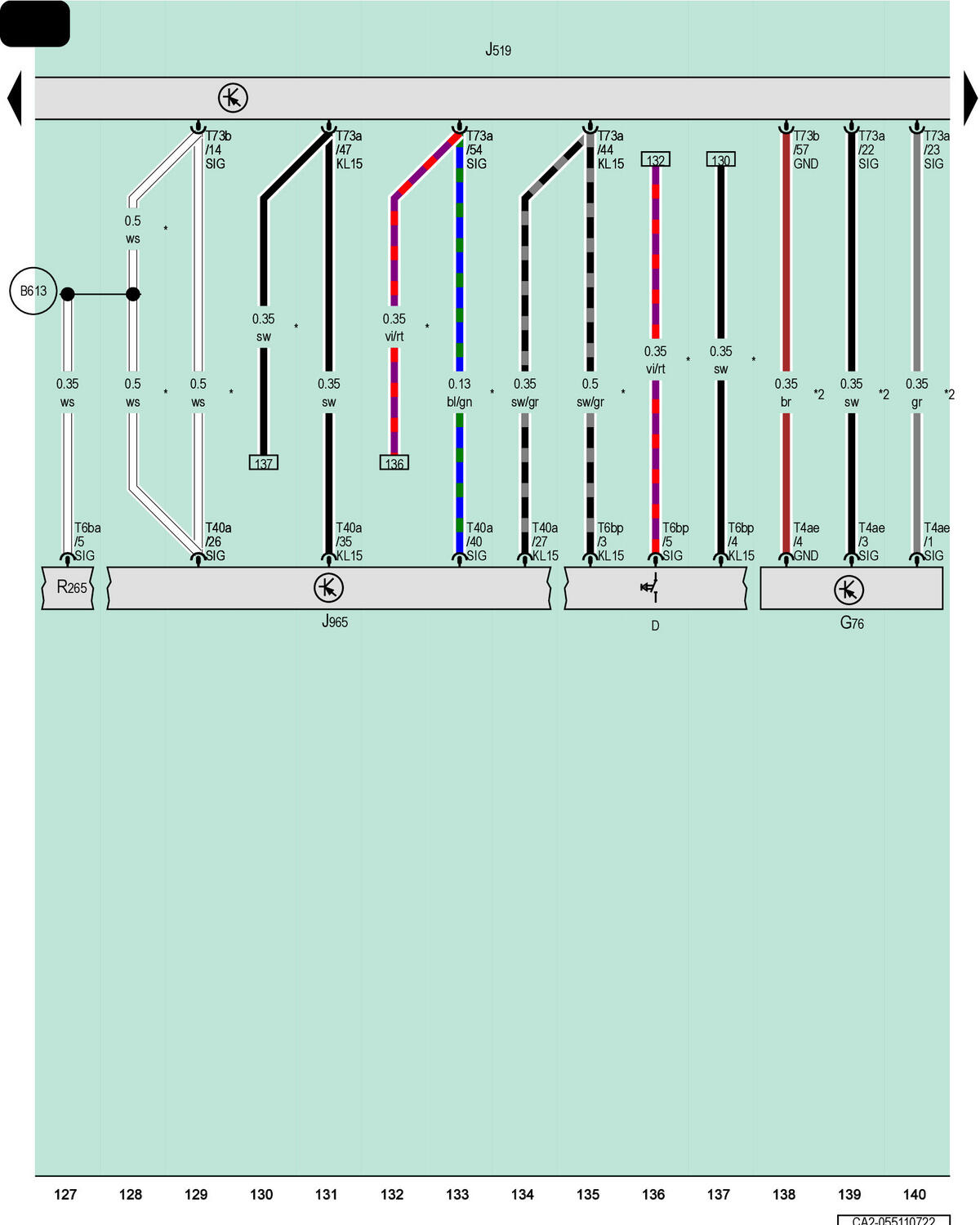

Vehicle Electrical System Control Module
D
Ignition/Starter Switch
G76
Left Rear Level Control System Sensor
J519
Vehicle Electrical System Control Module
J965
Access/Start System Interface
R265
Storage Compartment with Cell Phone Interface
T4ae
4-Pin Connector, Black
T6ba
6-Pin Connector, Black
T6bp
6-Pin Connector, Black
T40a
40-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
B613
Connection 41 (in Main Wiring Harness)
*
Depending on Equipment
*2
For Vehicles Without ESP

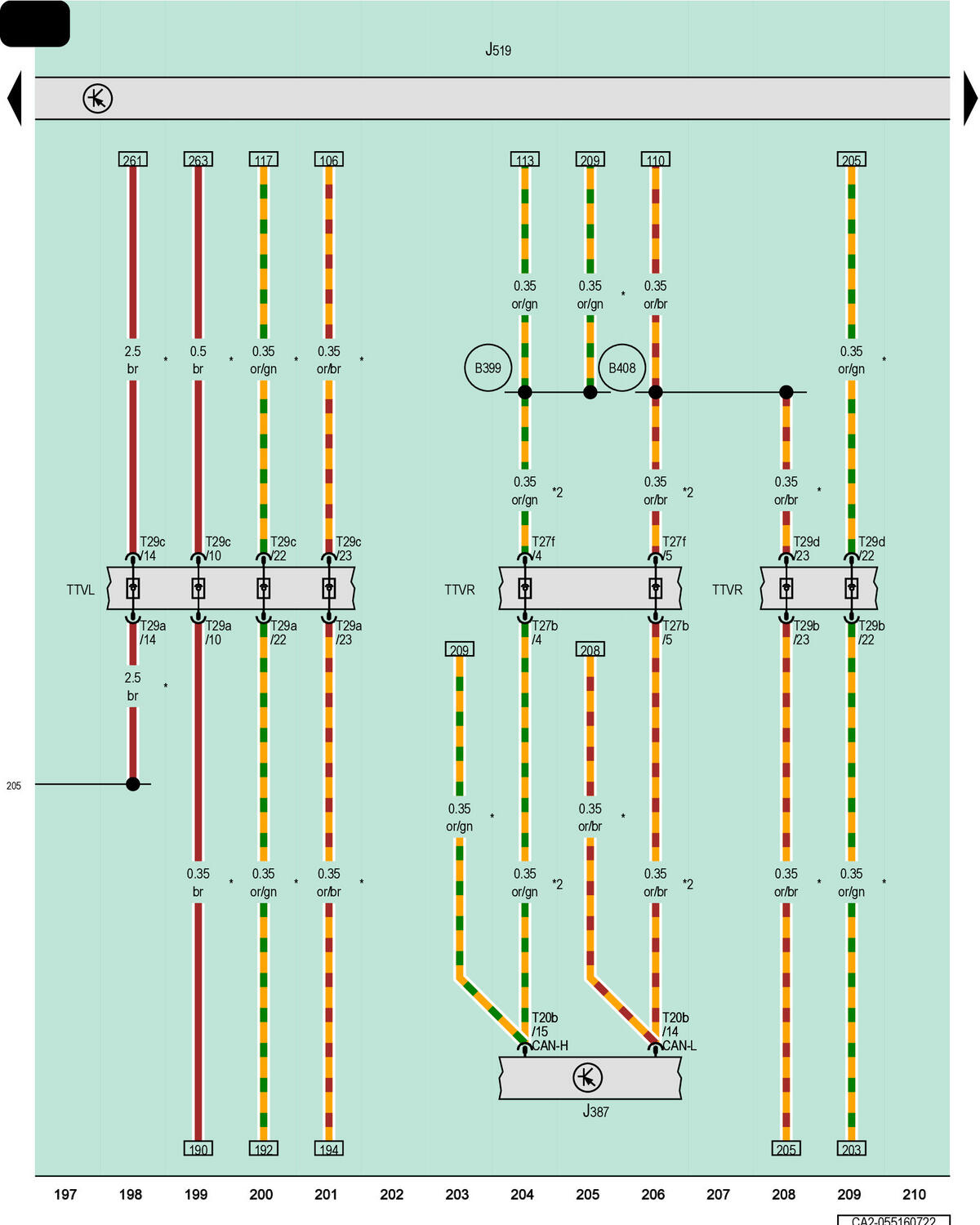

J387
Front Passenger Door Control Module
J519
Vehicle Electrical System Control Module
T20b
20-Pin Connector, White
T27b
27-Pin Connector, Black
T27f
27-Pin Connector, Black
T29a
29-Pin Connector, White
T29b
29-Pin Connector, White
T29c
29-Pin Connector, White
T29d
29-Pin Connector, White
TTVL
Left Front Door Coupling Point
TTVR
Right Front Door Coupling Point
205
Ground Connection (in Driver Door Wiring Harness)
B399
Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B408
Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
*
For Vehicles with Peripheral Camera
*2
For Vehicles without Peripheral Camera
