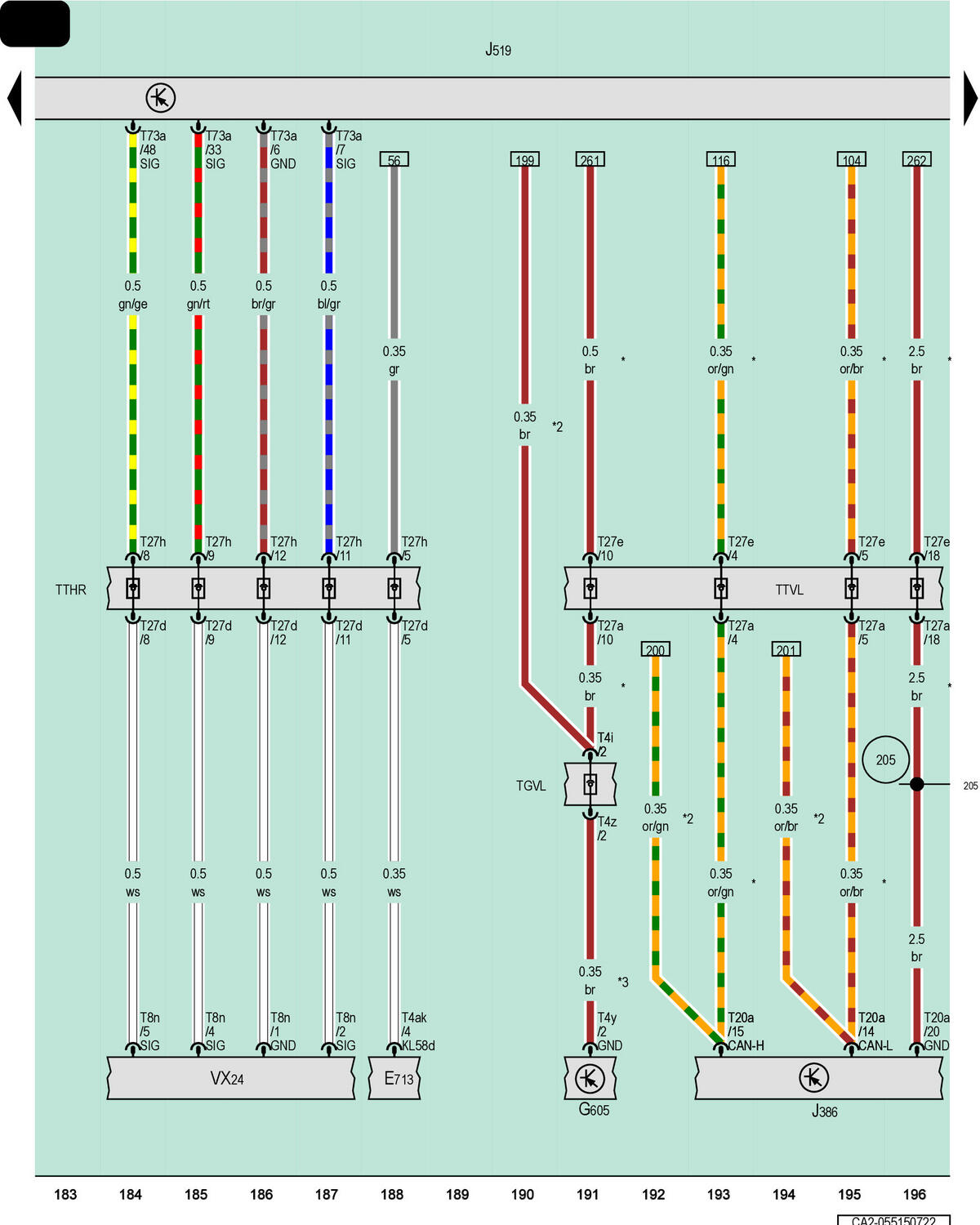

Left Front Exterior Door Handle Touch Sensor, Vehicle Electrical System Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E713

Passenger Side Rear Power Window Button

G605

Left Front Exterior Door Handle Touch Sensor

J386

Driver Door Control Module

J519

Vehicle Electrical System Control Module

T4ak

4-Pin Connector, Black

T4i

4-Pin Connector, Black

T4y

4-Pin Connector, Black

T4z

4-Pin Connector, Black

T8n

8-Pin Connector, Black

T20a

20-Pin Connector, White

T27a

27-Pin Connector, Black

T27d

27-Pin Connector, Black

T27e

27-Pin Connector, Black

T27h

27-Pin Connector, Black

T73a

73-Pin Connector, Black

TGVL

Left Front Exterior Door Handle Coupling Point

TTHR

Right Rear Door Coupling Point

TTVL

Left Front Door Coupling Point

VX24

Right Rear Door Lock Unit

205

Ground Connection (in Driver Door Wiring Harness)

*

For Vehicles without Peripheral Camera

*2

For Vehicles with Peripheral Camera

*3

The Color of the Wires Depends on Vehicle Equipment
