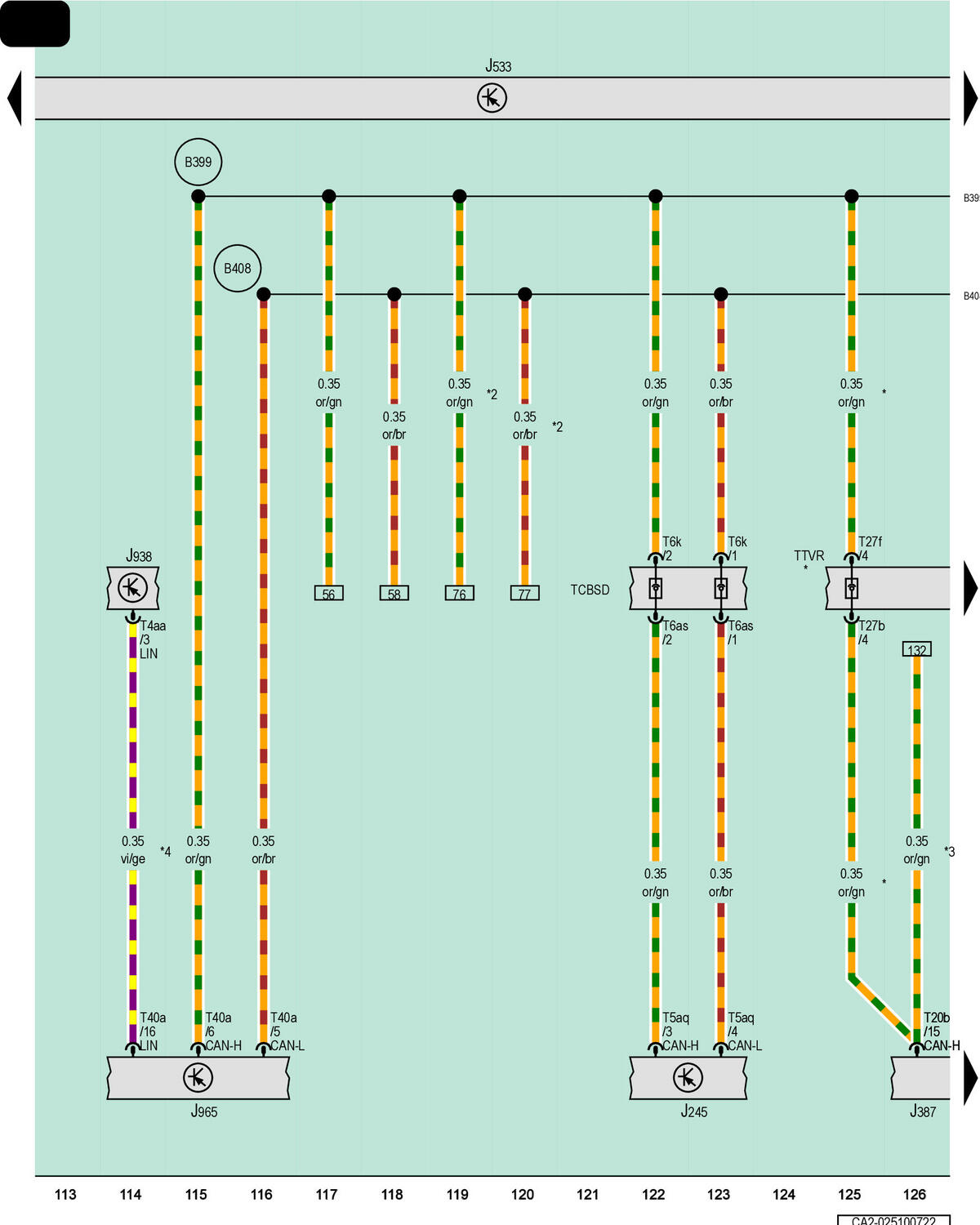

Sunroof Control Module, Front Passenger Door Control Module, Power Rear Lid Opening Control Module, Access/Start System Interface
J245
Sunroof Control Module
J387
Front Passenger Door Control Module
J533
Data Bus on Board Diagnostic Interface
J938
Power Rear Lid Opening Control Module
J965
Access/Start System Interface
T4aa
4-Pin Connector, Black
T5aq
5-Pin Connector, Black
T6as
6-Pin Connector, Black
T6k
6-Pin Connector, Black
T20b
20-Pin Connector, Black
T27b
27-Pin Connector, Black
T27f
27-Pin Connector, Black
T40a
40-Pin Connector, Black
TCBSD
CAN Bus Sunroof Coupling Point
TTVR
Right Front Door Coupling Point
B399
Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B408
Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
*
For Vehicles without Peripheral Camera
*2
For Vehicles with Trailer Setup
*3
For Vehicles with Peripheral Camera
*4
For Vehicles with Sensor-Controlled Power Rear Lid Opening
