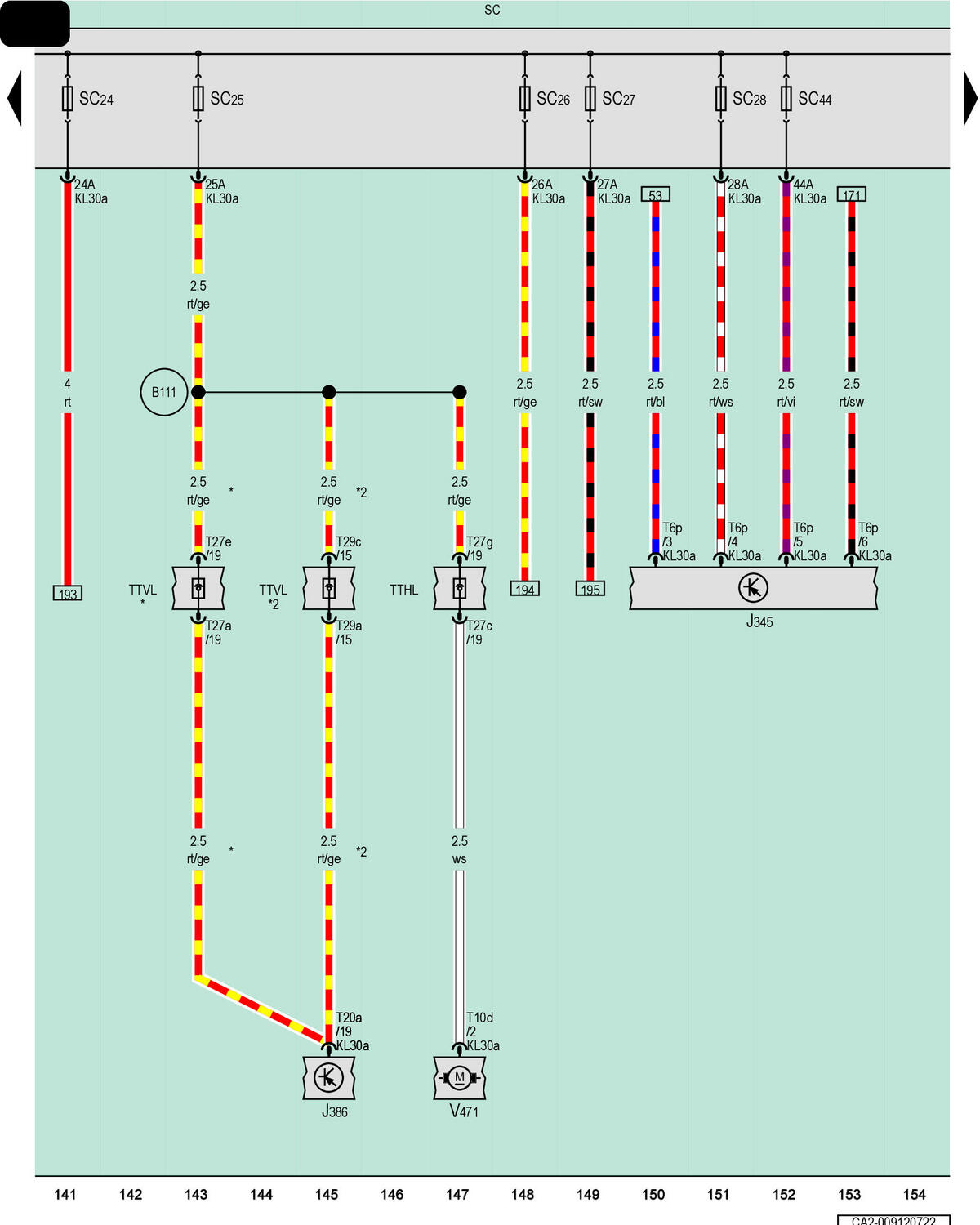

Towing Recognition Control Module, Driver Door Control Module, Fuse Panel C, Driver Side Rear Window Regulator Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J345

Towing Recognition Control Module

J386

Driver Door Control Module

SC

Fuse Panel C

SC24

Fuse 24 (On Fuse Panel C)

SC25

Fuse 25 (On Fuse Panel C)

SC26

Fuse 26 (On Fuse Panel C)

SC27

Fuse 27 (On Fuse Panel C)

SC28

Fuse 28 (On Fuse Panel C)

SC44

Fuse 44 (On Fuse Panel C)

T6p

6-Pin Connector, Black

T10d

10-Pin Connector, Black

T20a

20-Pin Connector, Black

T27a

27-Pin Connector, Black

T27c

27-Pin Connector, Black

T27e

27-Pin Connector, Black

T27g

27-Pin Connector, Black

T29a

29-Pin Connector, White

T29c

29-Pin Connector, White

TTHL

Left Rear Door Coupling Point

TTVL

Left Front Door Coupling Point

V471

Driver Side Rear Window Regulator Motor

B111

Positive Connection 1 (30a) (in Interior Wiring Harness)

*

For Vehicles without Peripheral Camera

*2

For Vehicles with Peripheral Camera
