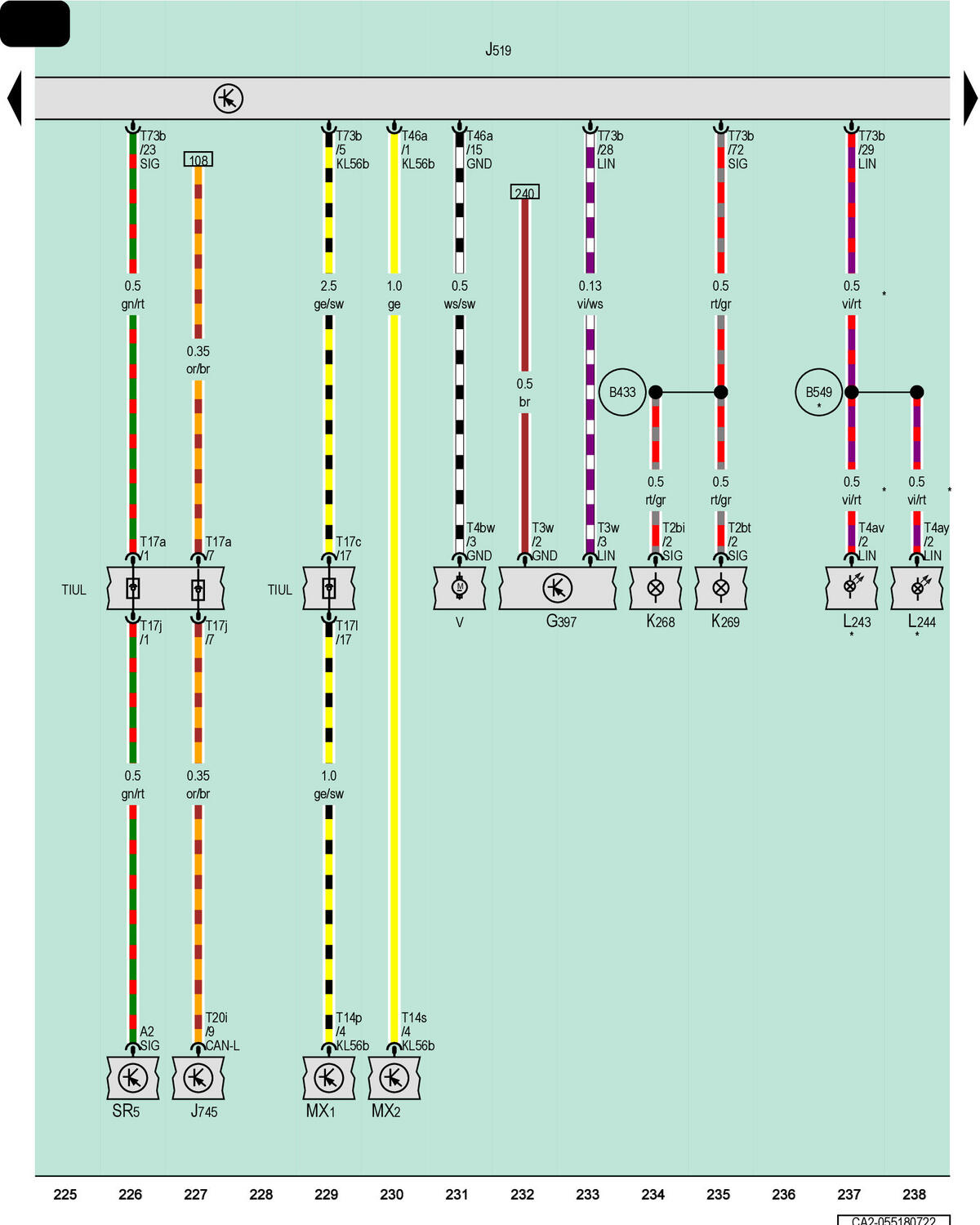

Vehicle Electrical System Control Module, Left Front FOOTWELL Lamp, Right Front FOOTWELL Lamp, Instrument Panel Contour Illumination Lamp 1
G397
Rain/Light Recognition Sensor
J519
Vehicle Electrical System Control Module
J745
Cornering Lamp and Headlamp Range Control Module
K268
Left Front Footwell Lamp
K269
Right Front Footwell Lamp
L243
Instrument Panel Contour Illumination Lamp 1
L244
Instrument Panel Contour Illumination Lamp 2
MX1
Left Front Headlamp
MX2
Right Front Headlamp
SR5
Relay and Fuse Panel 5
T2bi
2-Pin Connector, Black
T2bt
2-Pin Connector, Black
T3w
3-Pin Connector, Black
T4av
4-Pin Connector, Black
T4ay
4-Pin Connector, Black
T4bw
4-Pin Connector, Black
T14p
14-Pin Connector, Black
T14s
14-Pin Connector, Black
T17a
17-Pin Connector, Black
T17c
17-Pin Connector, Red
T17j
17-Pin Connector, Black
T17l
17-Pin Connector, Red
T20i
20-Pin Connector, Brown
T46a
46-Pin Connector, Black
T73b
73-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
V
Windshield Wiper Motor
B433
Footwell Illumination Connection (in Main Wiring Harness)
B549
LIN Bus Connection 2 (in Main Wiring Harness)
*
For Vehicles with Ambient Lighting
