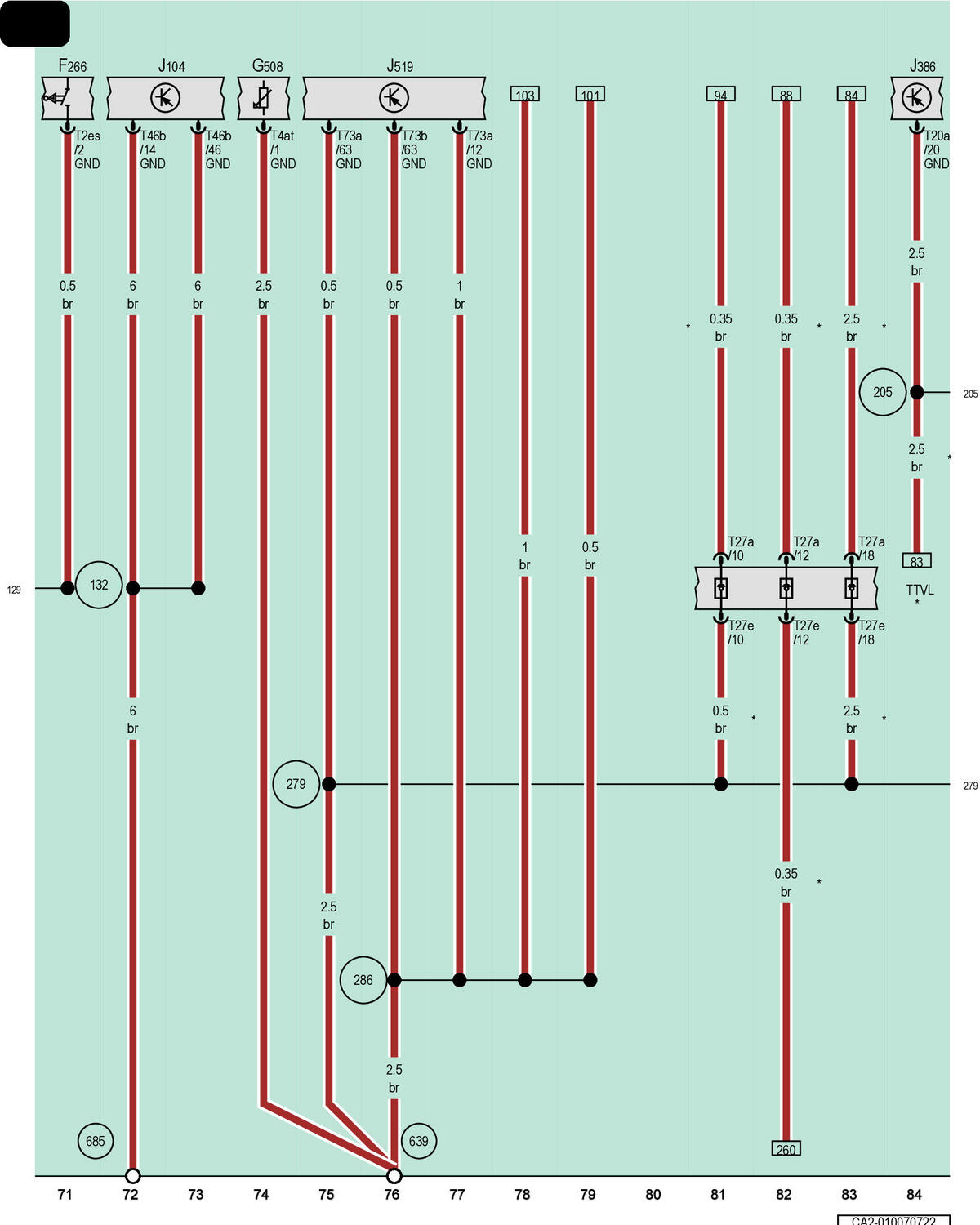

Engine Hood Contact Switch, Electric Trailer Brake Position Sensor, Abs Control Module, Driver Door Control Module, Vehicle Electrical System Control Module
F266
Engine Hood Contact Switch
G508
Electric Trailer Brake Position Sensor
J104
ABS Control Module
J386
Driver Door Control Module
J519
Vehicle Electrical System Control Module
T2es
2-Pin Connector, Black
T4at
4-Pin Connector, Black
T20a
20-Pin Connector, Black
T27a
27-Pin Connector, Black
T27e
27-Pin Connector, Black
T46b
46-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
TTVL
Left Front Door Coupling Point
129
Ground Connection (in Dual Tone Horn Wiring Harness)
132
Ground Connection 3 (in Engine/Motor Compartment Wiring Harness)
205
Ground Connection (in Driver Door Wiring Harness)
279
Ground Connection 5 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
639
Ground Connection on Left A-Pillar
685
Ground Connection 1 on Right Front Longitudinal Member
*
For Vehicles without Peripheral Camera
