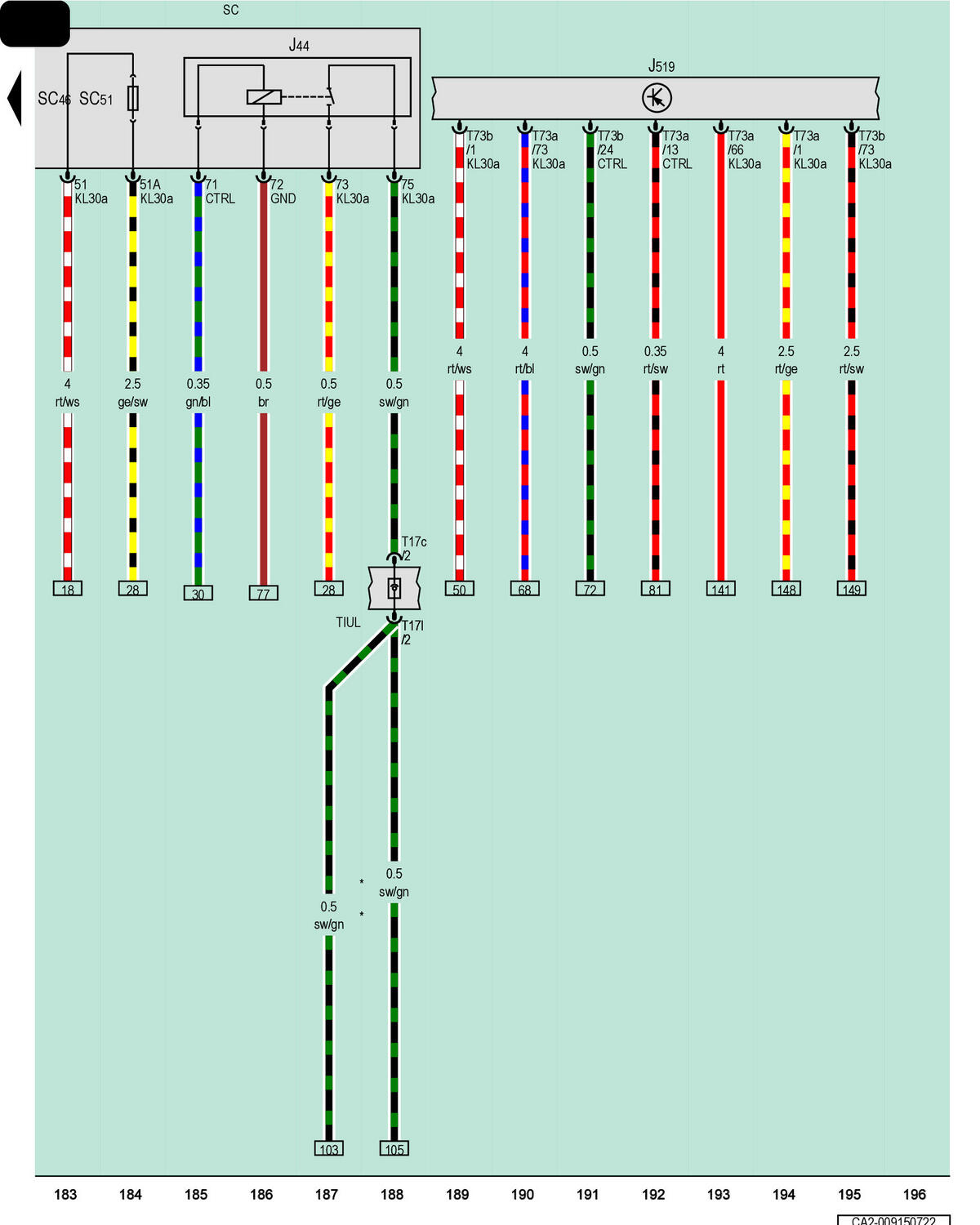

Vehicle Electrical System Control Module, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J44

A/C Clutch Relay

J519

Vehicle Electrical System Control Module

SC

Fuse Panel C

SC46

Fuse 46 (On Fuse Panel C)

SC51

Fuse 51 (On Fuse Panel C)

T17c

17-Pin Connector, Red

T17l

17-Pin Connector, Red

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

*

Depending on Equipment
