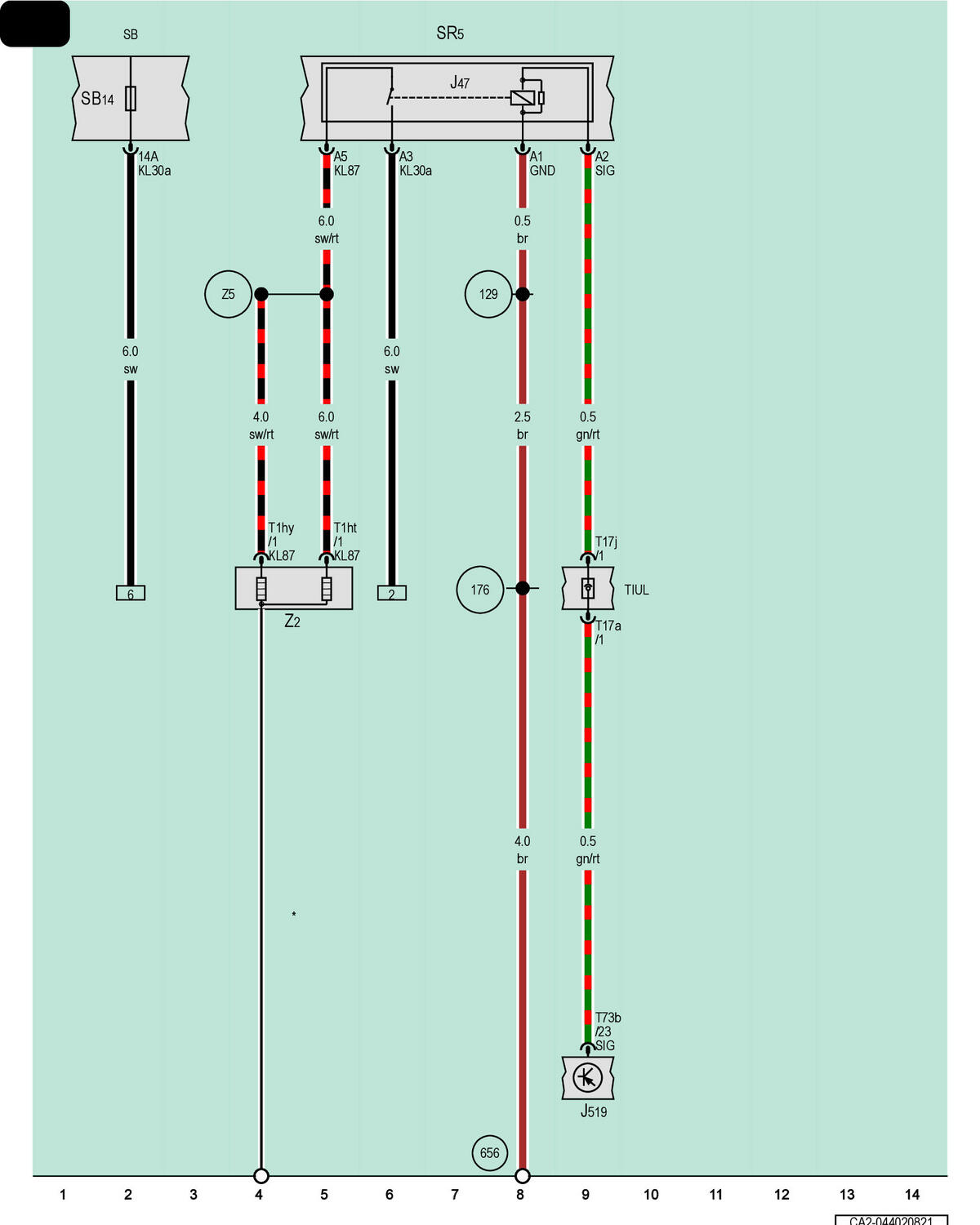

Windshield Defogger Relay, Vehicle Electrical System Control Module, Relay And Fuse Panel 5, Windshield Defogger
J47
Windshield Defogger Relay
J519
Vehicle Electrical System Control Module
SB
Fuse Panel B
SR5
Relay and Fuse Panel 5
SB14
Fuse 14 (On Fuse Panel B)
T1ht
1-Pin Connector, Black
T1hy
1-Pin Connector, Black
T17a
17-Pin Connector, Black
T17j
17-Pin Connector, Black
T73b
73-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
Z2
Windshield Defogger
129
Ground Connection (in Dual Tone Horn Wiring Harness)
176
Ground Connection (in Right Headlamp Wiring Harness)
656
Ground Connection on Right Headlamp
Z5
Connection (in Window Defogger Wiring Harness)
*
Ground Supply via the Housing
