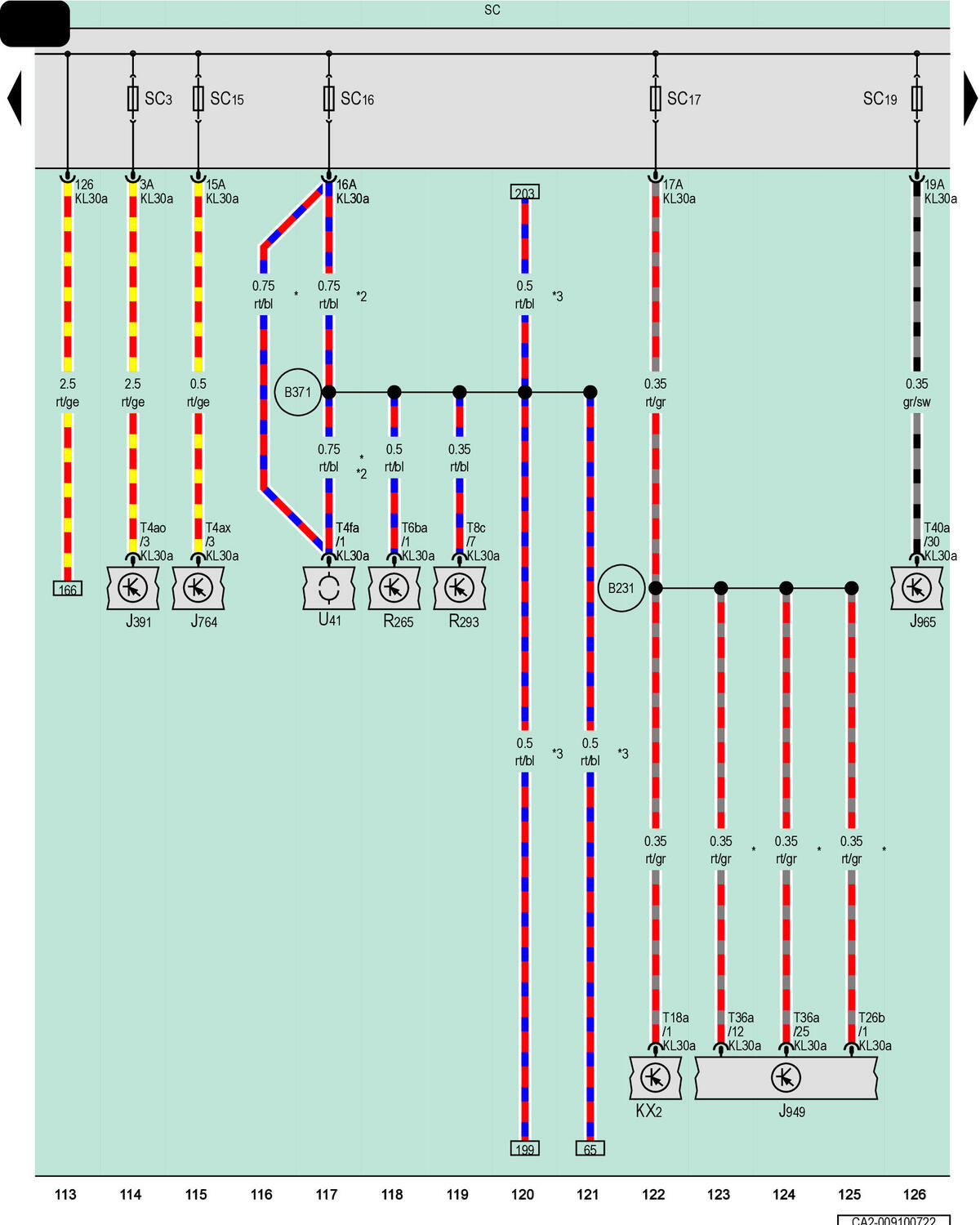

Rear Fresh Air Blower Control Module, Electronic Steering Column Lock Control Module, Control Module For Emergency Call Module And Communication Unit, Access/Start System Interface, Instrument Cluster, Storage Compartment With Cell Phone Interface, USB Distributor, Fuse Panel C, USB Connection 1, Positive Connection 5 (30A) (In Interior Wiring Harness)
J391
Rear Fresh Air Blower Control Module
J764
Electronic Steering Column Lock Control Module
J949
Control Module for Emergency Call Module and Communication Unit
J965
Access/Start System Interface
KX2
Instrument Cluster
R265
Storage Compartment with Cell Phone Interface
R293
USB Distributor
SC
Fuse Panel C
SC3
Fuse 3 (On Fuse Panel C)
SC15
Fuse 15 (On Fuse Panel C)
SC16
Fuse 16 (On Fuse Panel C)
SC17
Fuse 17 (On Fuse Panel C)
SC19
Fuse 19 (On Fuse Panel C)
T4ao
4-Pin Connector, Black
T4ax
4-Pin Connector, Black
T4fa
4-Pin Connector, Red
T6ba
6-Pin Connector, Black
T8c
8-Pin Connector
T18a
18-Pin Connector, Black
T26b
26-Pin Connector, Black
T36a
36-Pin Connector, Black
T40a
40-Pin Connector, Black
U41
USB Connection 1
B231
Positive Connection 5 (30a) (in Interior Wiring Harness)
B371
Antenna Connection 1 (in Main Wiring Harness)
*
Depending on Equipment
*2
Diameter Depends on Equipment
*3
From July 2022
