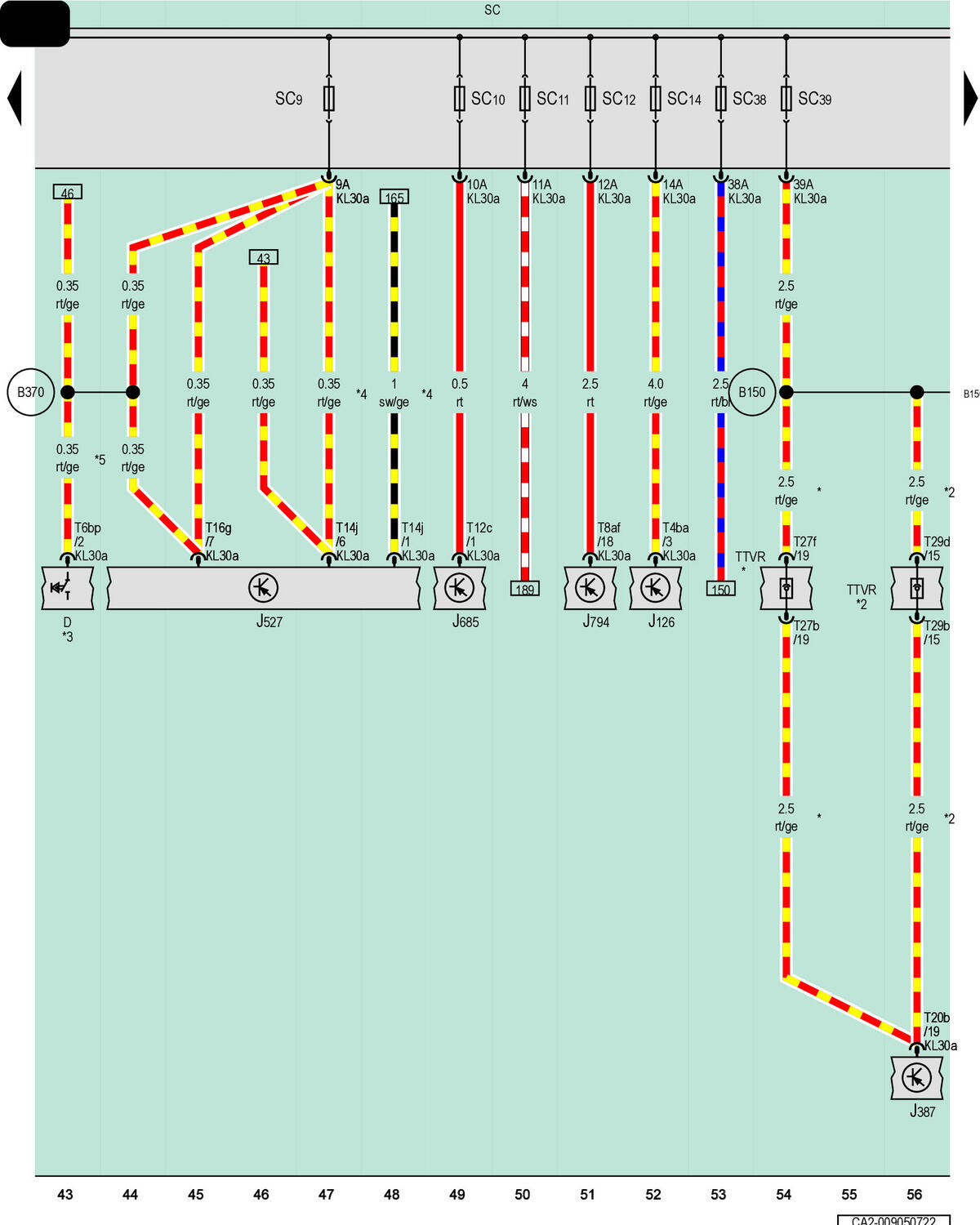

Ignition/Starter Switch, Fresh Air Blower Control Module, Front Passenger Door Control Module, Steering Column Electronics Control Module, Front Information Display Control Head, Information Electronics Control Module 1, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

D

Ignition/Starter Switch

J126

Fresh Air Blower Control Module

J387

Front Passenger Door Control Module

J527

Steering Column Electronics Control Module

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

SC

Fuse Panel C

SC9

Fuse 9 (On Fuse Panel C)

SC10

Fuse 10 (On Fuse Panel C)

SC11

Fuse 11 (On Fuse Panel C)

SC12

Fuse 12 (On Fuse Panel C)

SC14

Fuse 14 (On Fuse Panel C)

SC38

Fuse 38 (On Fuse Panel C)

SC39

Fuse 39 (On Fuse Panel C)

T4ba

4-Pin Connector, Black

T6bp

6-Pin Connector, Black

T8af

8-Pin Connector, Black

T12c

12-Pin Connector, Black

T14j

14-Pin Connector, Black

T16g

16-Pin Connector, Black

T20b

20-Pin Connector, Black

T27b

27-Pin Connector, Black

T27f

27-Pin Connector, Black

T29b

29-Pin Connector, White

T29d

29-Pin Connector, White

TTVR

Right Front Door Coupling Point

B150

Positive Connection 2 (30a) (in Interior Wiring Harness)

B370

Connection 2 (5V) (in Main Wiring Harness)

*

For Vehicles without Peripheral Camera

*2

For Vehicles with Peripheral Camera

*3

For Vehicles Without Access/Start Authorization System

*4

For Vehicles with Heated Steering Wheel

*5

Depending on Equipment
