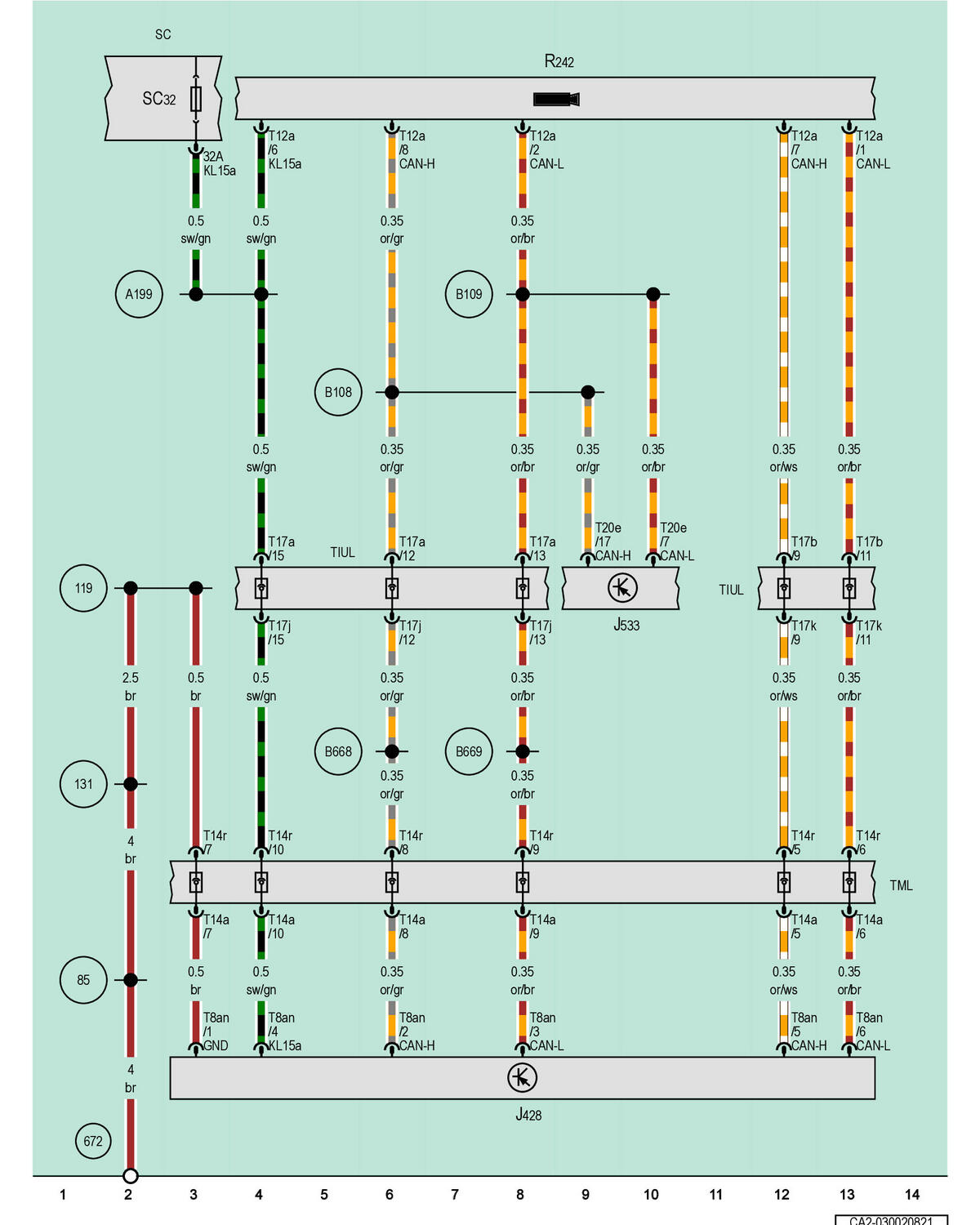

Control Module For Adaptive Cruise Control, Data Bus On Board Diagnostic Interface, Driver Assistance Systems Front Camera, Fuse Panel C
J428
Control Module for Adaptive Cruise Control
J533
Data Bus on Board Diagnostic Interface
R242
Driver Assistance Systems Front Camera
SC
Fuse Panel C
SC32
Fuse 32 (On Fuse Panel C)
T8an
8-Pin Connector, Black
T12a
12-Pin Connector, Brown
T14a
14-Pin Connector
T14r
14-Pin Connector, Black
T17a
17-Pin Connector, Black
T17b
17-Pin Connector, Brown
T17j
17-Pin Connector, Black
T17k
17-Pin Connector, Brown
T20e
20-Pin Connector, Red
TIUL
Coupling Point in Interior, Bottom Left
TML
Coupling Point in Engine/Motor Compartment, Left
85
Ground Connection 1 (in Engine/Motor Compartment Wiring Harness)
119
Ground Connection 1 (in Headlamp Wiring Harness)
131
Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)
672
Ground Connection 2 on Left Front Longitudinal Member
A199
Positive Connection 4 (15a) (in Instrument Panel Wiring Harness)
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B668
CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669
CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
