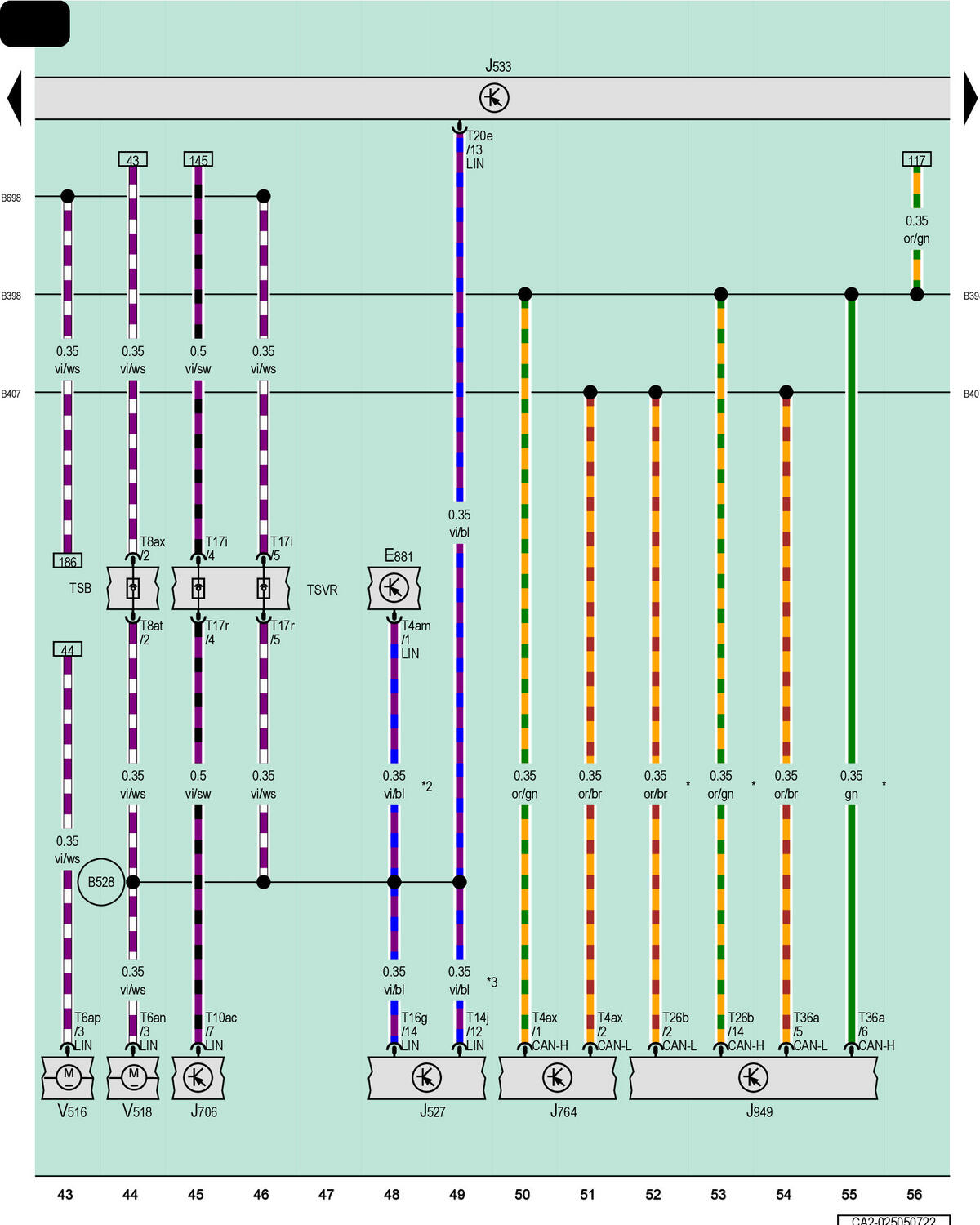

Driving Profile Selection Control Head, Steering Column Electronics Control Module, Seat Occupant Detection System Control Module, Electronic Steering Column Lock Control Module, Control Module For Emergency Call Module And Communication Unit, Right Front Seat Backrest Fan 1, Right Front Seat Cushion Fan 1
E881
Driving Profile Selection Control Head
J527
Steering Column Electronics Control Module
J533
Data Bus on Board Diagnostic Interface
J706
Seat Occupant Detection System Control Module
J764
Electronic Steering Column Lock Control Module
J949
Control Module for Emergency Call Module and Communication Unit
T4am
4-Pin Connector, Black
T4ax
4-Pin Connector, Black
T6an
6-Pin Connector, Black
T6ap
6-Pin Connector, Black
T8at
8-Pin Connector, Black
T8ax
8-Pin Connector, Black
T10ac
10-Pin Connector, Black
T14j
14-Pin Connector, Black
T16g
16-Pin Connector, Black
T17i
17-Pin Connector, Red
T17r
17-Pin Connector, Red
T20e
20-Pin Connector, Black
T26b
26-Pin Connector, Black
T36a
36-Pin Connector, Black
TSB
Front Passenger Seat Backrest Coupling Point
TSVR
Right Front Seat Coupling Station
V516
Right Front Seat Backrest Fan 1
V518
Right Front Seat Cushion Fan 1
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B528
LIN Bus Connection 1 (in Main Wiring Harness)
B698
LIN Bus Connection 3 (in Main Wiring Harness)
*
Depending on Equipment
*2
For AWD Vehicles
*3
From September 2018
