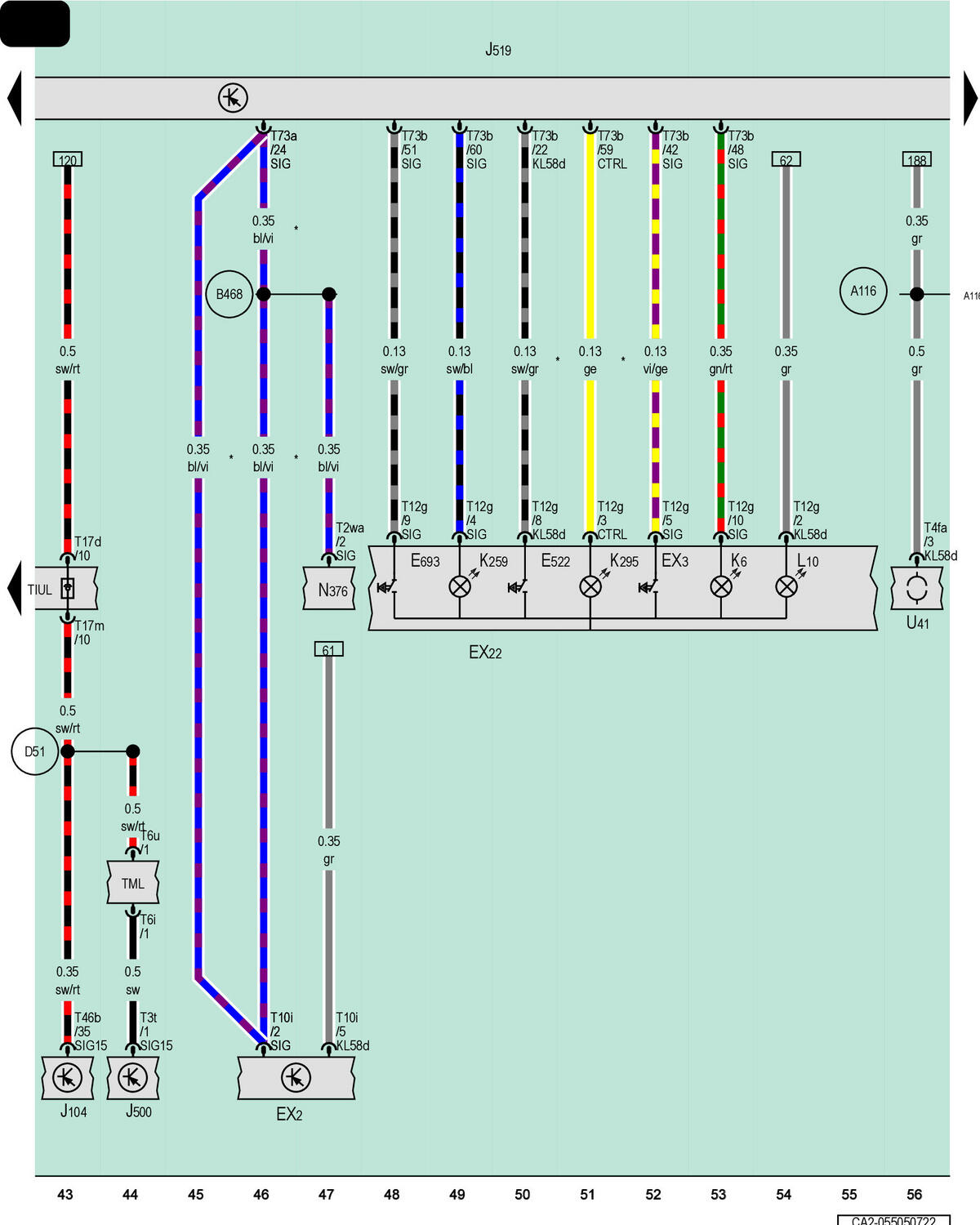

Emergency Flasher Switch, Center Instrument Panel Switch Module, Steering Wheel Heating Button, Start/Stop Mode Button, Vehicle Electrical System Control Module, Emergency Flasher Indicator Lamp, Start/Stop Mode Indicator Lamp, Steering Wheel Heating Indicator Lamp, Instrument Cluster Illumination Bulb

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

EX2

Selector Mechanism

EX3

Emergency Flasher Switch

EX22

Center Instrument Panel Switch Module

E522

Steering Wheel Heating Button

E693

Start/Stop Mode Button

J104

ABS Control Module

J500

Power Steering Control Module

J519

Vehicle Electrical System Control Module

Emergency Flasher Indicator Lamp

K259

Start/Stop Mode Indicator Lamp

K295

Steering Wheel Heating Indicator Lamp

L10

Instrument Cluster Illumination Bulb

N376

Ignition Switch Key Lock Solenoid

T2wa

2-Pin Connector, Black

T3t

3-Pin Connector, Black

T4fa

4-Pin Connector, Red

T6i

6-Pin Connector, Black

T6u

6-Pin Connector, Black

T10i

10-Pin Connector, Black

T12g

12-Pin Connector, Black

T17d

17-Pin Connector, Blue

T17m

17-Pin Connector, Blue

T46b

46-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

TML

Coupling Point in Engine/Motor Compartment, Left

U41

USB Connection 1

A116

Connection 58d (in Instrument Panel Wiring Harness) 2

B468

Connection 4 (in Main Wiring Harness)

D51

Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)

Depending on Equipment
