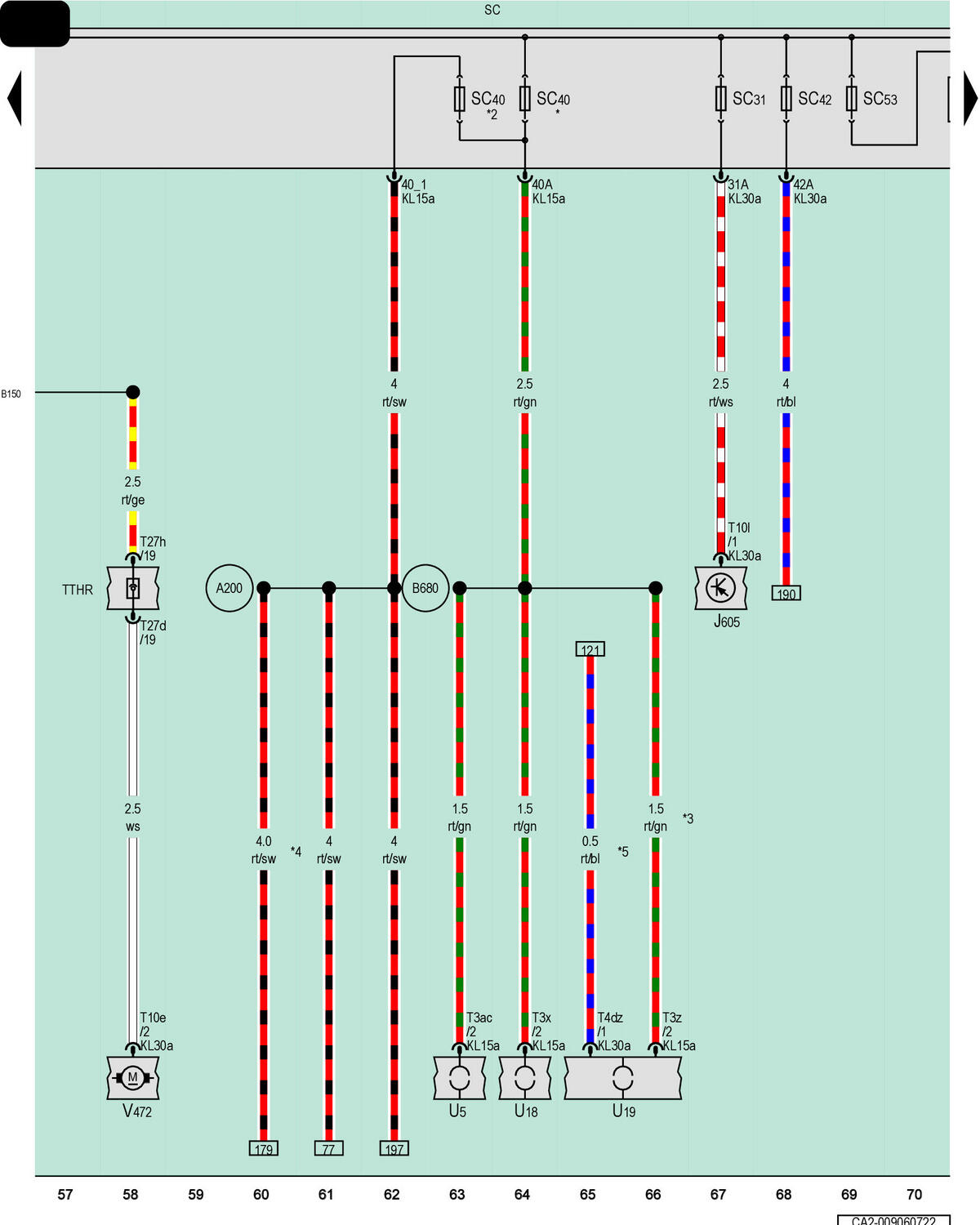

Rear Lid Control Module, Fuse Panel C, 12 V Socket, 12 V Socket 2, 12 V Socket 3, Passenger Side Rear Window Regulator Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J605

Rear Lid Control Module

SC

Fuse Panel C

SC31

Fuse 31 (On Fuse Panel C)

SC40

Fuse 40 (On Fuse Panel C)

SC42

Fuse 42 (On Fuse Panel C)

SC53

Fuse 53 (On Fuse Panel C)

T3ac

3-Pin Connector, Naturally Cloudy

T3x

3-Pin Connector, Naturally Cloudy

T3z

3-Pin Connector, Naturally Cloudy

T4dz

4-Pin Connector

T10e

10-Pin Connector, Black

T10l

10-Pin Connector, Black

T27d

27-Pin Connector, Black

T27h

27-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

U5

12 V Socket

U18

12 V Socket 2

U19

12 V Socket 3

V472

Passenger Side Rear Window Regulator Motor

A200

Positive Connection 5 (15a) (in Instrument Panel Wiring Harness)

B150

Positive Connection 2 (30a) (in Interior Wiring Harness)

B680

Connection (Socket) in Interior Wiring Harness

*

Supply via Terminal 30 Possible

*2

From the Factory Supplied by Terminal 15

*3

Through July 2022

*4

From July 2020

*5

From July 2022
