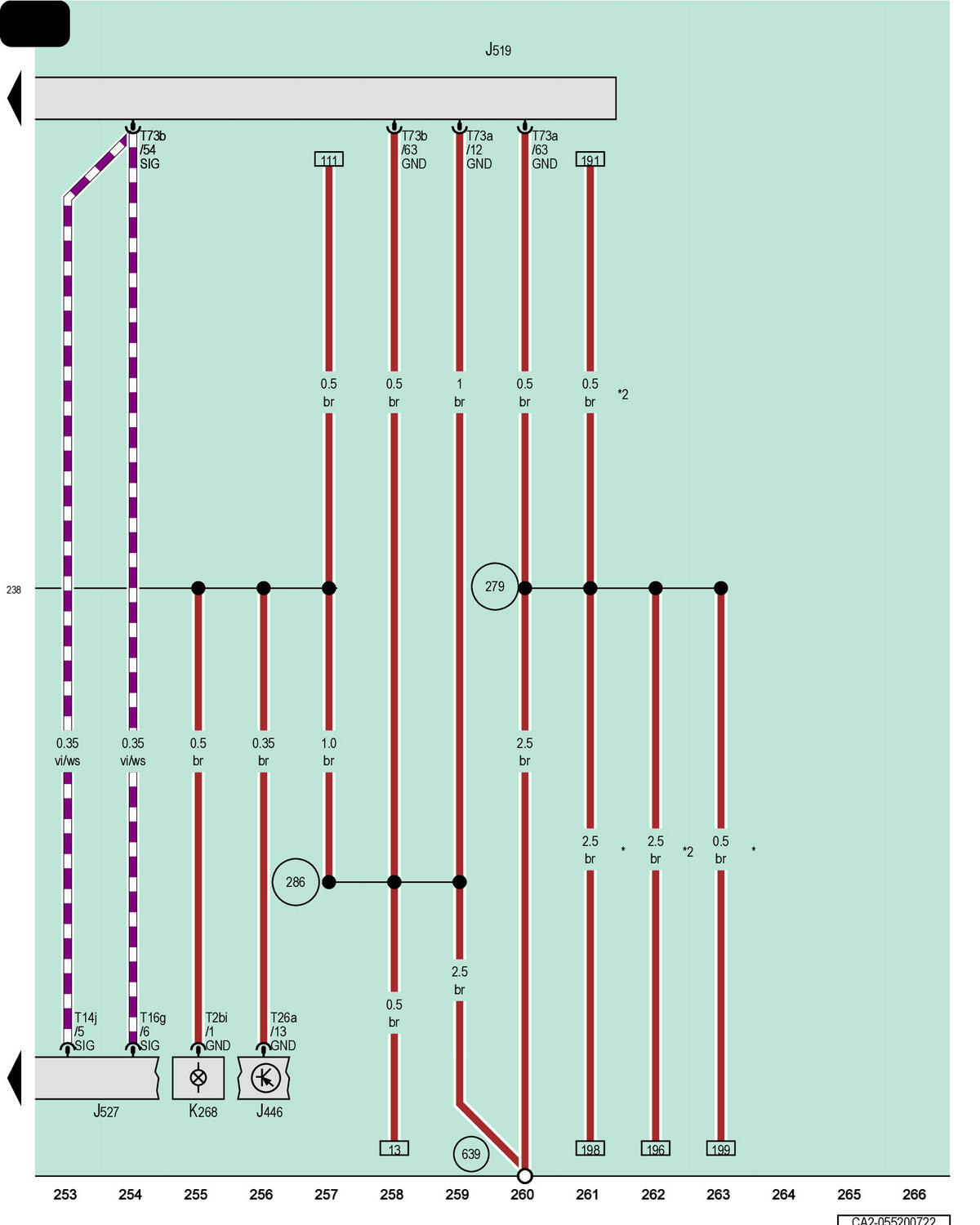

Vehicle Electrical System Control Module, Left Front FOOTWELL Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J446

Parking Aid Control Module

J519

Vehicle Electrical System Control Module

J527

Steering Column Electronics Control Module

K268

Left Front Footwell Lamp

T2bi

2-Pin Connector, Black

T14j

14-Pin Connector, Black

T16g

16-Pin Connector, Black

T26a

26-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

238

Ground Connection 1 (in Interior Wiring Harness)

279

Ground Connection 5 (in Interior Wiring Harness)

286

Ground Connection 8 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

*

For Vehicles with Peripheral Camera

*2

For Vehicles without Peripheral Camera
