Underbody Protection - Overview With Various Layer Thicknesses

NOTE:

The underbody protection (stone chip protection) is to be repaired according to its original conditions in appearance and layer thickness.

Water drain holes must stay clear.

All threaded pins, weld nuts with M-threads, and all other pins and contact surfaces for the assembly must be functional after applying the underbody protection.

Underbody Protection Overview

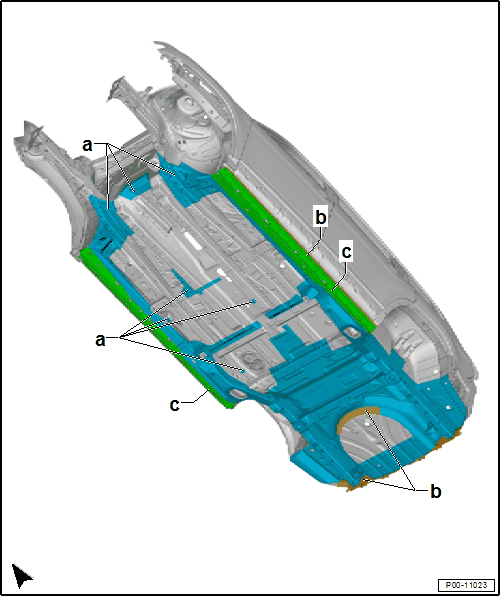

Fig 1: Underbody Protection Areas

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

a - Underbody Protection
- Layer Thickness 0.3 mm
b - Underbody Protection
- Layer Thickness 0.5 mm
c - Underbody Protection
- Layer Thickness 1.2 mm
