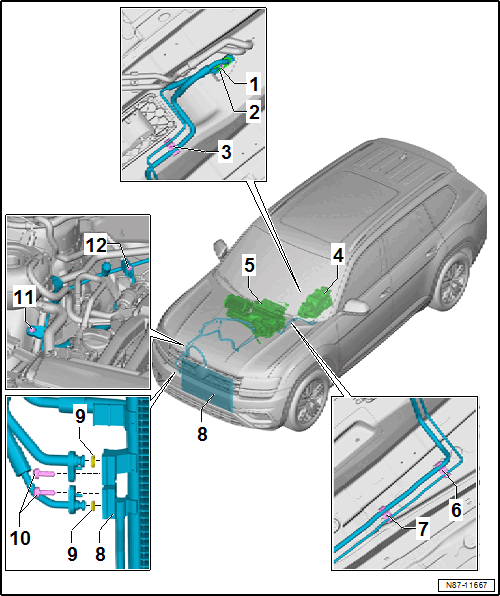

Component Location Overview - Components Inside Rear Passenger Compartment

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Nut/Bolt
   • 8 Nm
2. Bracket
3. Refrigerant Line Retainer
4. Rear Heater and A/C Unit
   • Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
5. Heater and A/C Unit
   • Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
6. Refrigerant Line Retainer
7. Refrigerant Line Retainer
8. Condenser with Desiccant Bag
   • Overview. Refer to OVERVIEW - CONDENSER .
   • Condenser, removing and installing. Refer to CONDENSER, REMOVING AND INSTALLING .
   • Desiccant Bag, Removing and Installing. Refer to DESICCANT BAG/DRYER CARTRIDGE, REMOVING AND INSTALLING .
9. Seal
   • Replace after each removal
10. Bolts
    • 8 Nm
    • For the condenser refrigerant line
11. Bolt
    • 22 Nm
12. Bolt
    • 18 Nm
