Partition, Removing And Installing: Removing

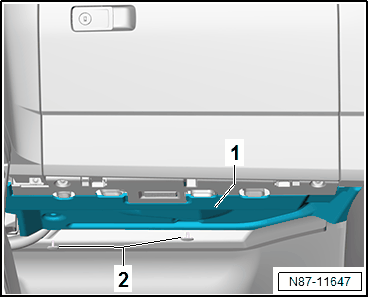

-- Depending on the version remove the plastic screws or plugs -2-.

GWWN87-11647Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the partition -1-.
