Rear Vent Temperature Sensor -G174-, Removing And Installing: Removing

NOTE:

Only for vehicles with Climatronic. For vehicles with an electric-manual climate control system, the openings in the air ducts are sealed with plugs.

-- Remove the rear center console trim. Refer to OVERVIEW - CENTER CONSOLE .

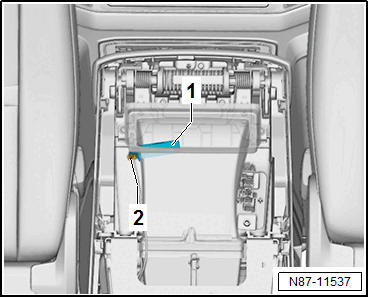

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Rear Vent Temperature Sensor -G174- -1- from the mount.
