Overview - Rear Display And Control Head

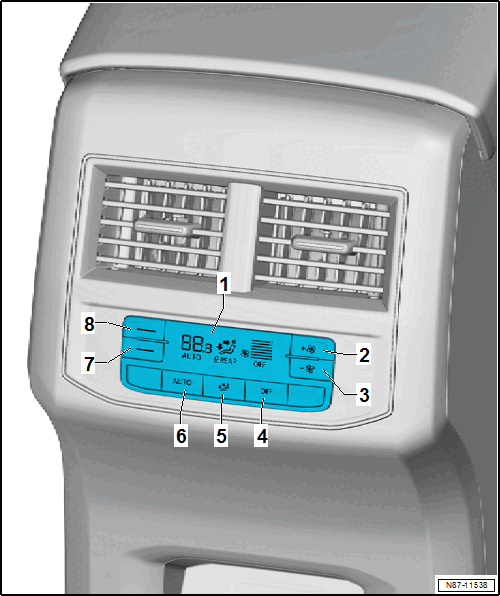

GWWN87-11538Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Temperature Display
    • Shows the set temperature
  2. High Blower Speed
    • Only for display, no function
  3. Low Blower Speed
    • Only for display, no function
  4. OFF  -Button for the Rear A/C System On/Off
  5. Air Distribution Button
  6. AUTO  Button
  7. Thermostat Button
    • The selected temperature will be shown in the display.
  8. Thermostat Button
    • The selected temperature will be shown in the display.
