Left Vent Temperature Sensor -G150-, Removing And Installing: Removing

NOTE:

Only for vehicles with Climatronic. For vehicles with an electric-manual climate control system, the openings in the air ducts are sealed with plugs.

-- Remove the A-pillar gap cover. Refer to A-PILLAR GAP COVER, REMOVING AND INSTALLING .

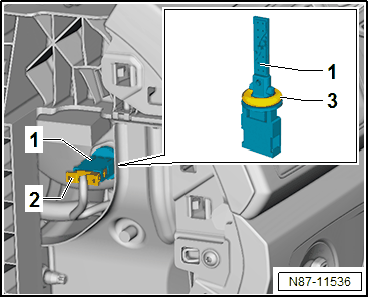

-- Turn the Left Vent Temperature Sensor -G150- -1- 90° and remove it from the mount.

GWWN87-11536Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.
