FOOTWELL Vent Temperature Sensor -G192-, Removing And Installing: Removing

NOTE:

Only for vehicles with Climatronic. For vehicles with an electric-manual climate control system, the openings in the air ducts are sealed with plugs.

-- Remove the driver side footwell vent. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

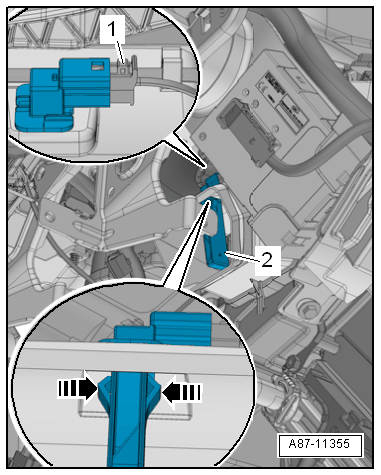

-- Slightly lift the Footwell Vent Temperature Sensor -G192- -2-.

GWWA87-11355Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the catches in direction of -arrows- with a Trim Removal Wedge :3409  .

-- Remove the Footwell Vent Temperature Sensor -G192- -2- upward.

-- Disconnect the connector -1-.
