Component Location Overview - Central Locking

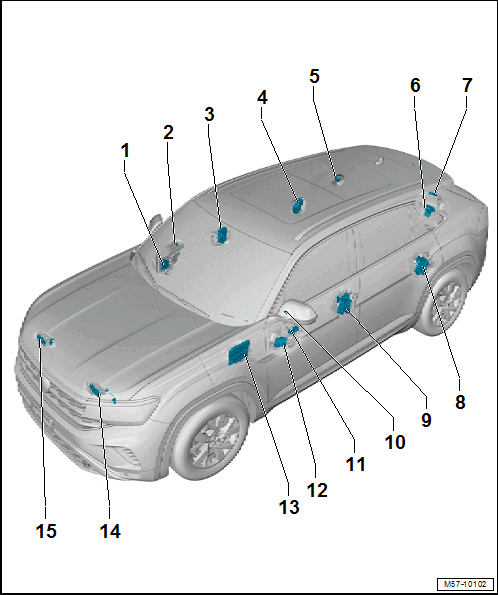

GWWM57-10102Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Passenger Door Control Module -J387-
  2. Front Passenger Interior Locking Button -E309-
  3. Right Front Door Lock
    • The door lock is attached to the door inner panel
    • The power central locking system is integrated in the door lock
    • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
  4. Right Rear Door Lock
    • The door lock is attached to the door inner panel
    • The power central locking system is integrated in the door lock
    • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
  5. Fuel Filler Door Lock Motor -V155-
  6. Rear Lid Latch
  7. Actuator
  8. Left Rear Door Lock
    • The door lock is attached to the door inner panel
    • The power central locking system is integrated in the door lock
    • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
  9. Left Front Door Lock
    • The door lock is attached to the door inner panel
    • The power central locking system is integrated in the door lock
    • Removing and Installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
  10. Driver Interior Locking Button -E308-
  11. Central Window Regulator Switch in Driver Door - E189-
  12. Driver Door Control Module -J386-
  13. Vehicle Electrical System Control Module -J519-
  14. Engine Hood Contact Switch -F266-
  15. Hood Contact Switch 2 -F329-
