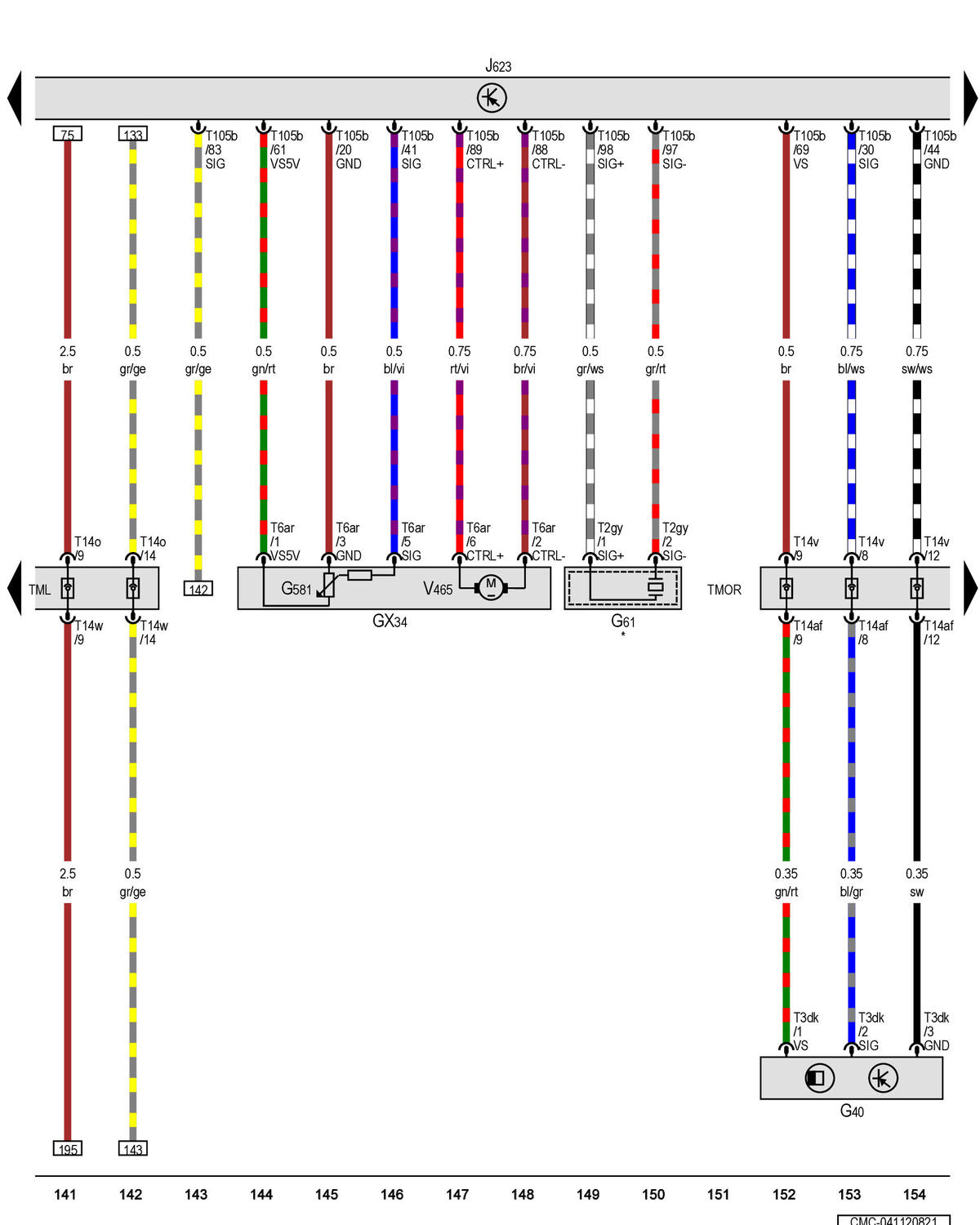

Charge Air Pressure Control Module, Camshaft Position Sensor, Knock Sensor 1, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX34

Charge Air Pressure Control Module

G40

Camshaft Position Sensor

G61

Knock Sensor 1

G581

Charge Air Pressure Actuator Position Sensor

J623

Engine/Motor Control Module

T2gy

2-Pin Connector, Black

T3dk

3-Pin Connector, Black

T6ar

6-Pin Connector, Gray

T14af

14-Pin Connector, Black

T14o

14-Pin Connector, Gray

T14v

14-Pin Connector, Black

T14w

14-Pin Connector, Gray

T105b

105-Pin Connector, Black

TML

Coupling Point in Engine/Motor Compartment, Left

TMOR

Coupling Point on Engine, Top Right

V465

Charge Air Pressure Actuator

*  Pre-Wired Component
