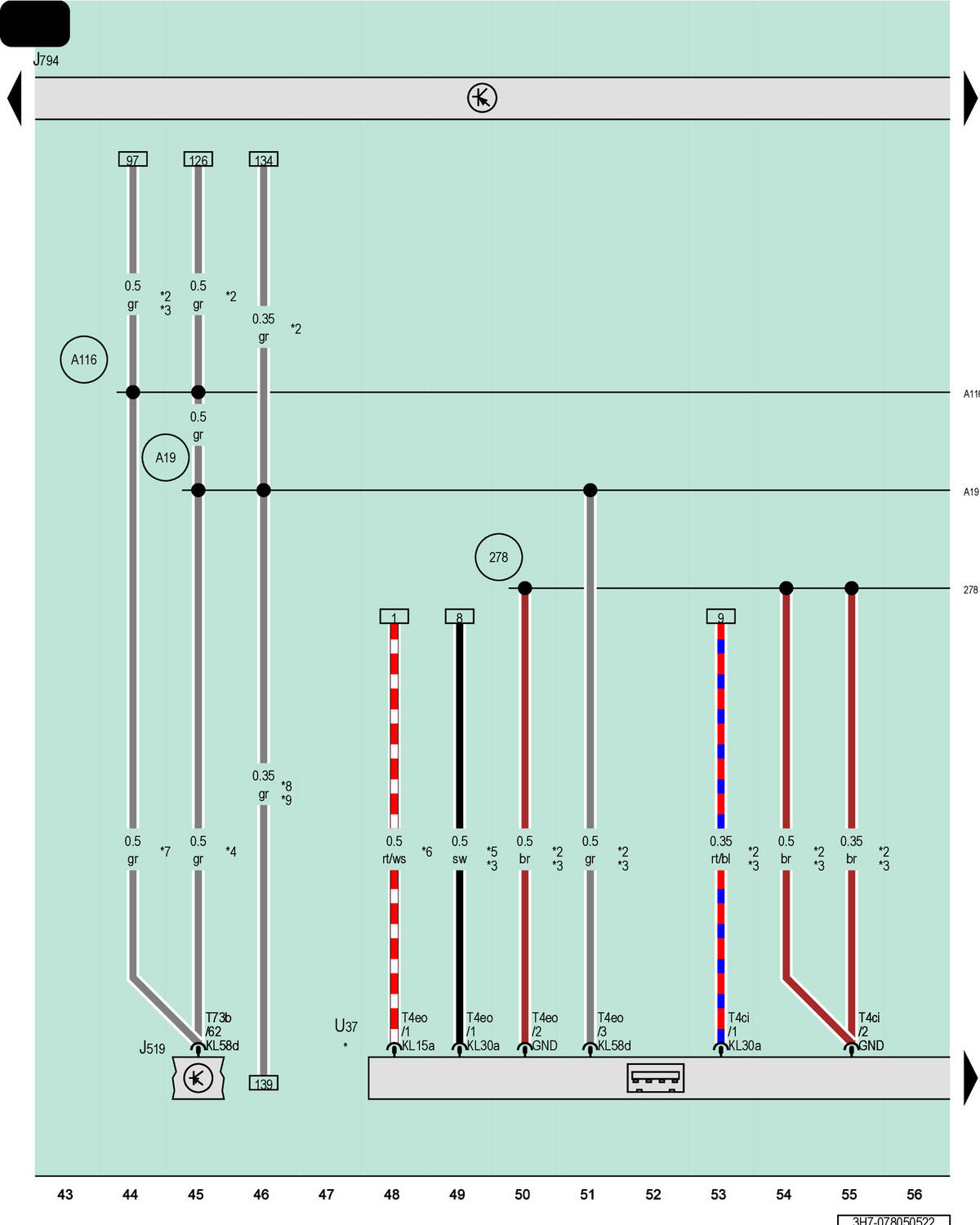

Vehicle Electrical System Control Module, Information Electronics Control Module 1, USB Charging Socket 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

J794

Information Electronics Control Module 1

T4Ci

4-Pin Connector, Red

T4Eo

4-Pin Connector, Brown

T73B

73-Pin Connector, Black

U37

Usb Charging Socket 1

278

Ground Connection 4 (In Interior Wiring Harness)

A19

Connection 58D (In Instrument Panel Wiring Harness)

A116

Connection 58D (In Instrument Panel Wiring Harness) 2

*

For Vehicles With Usb Charging Socket

*2

Depending On Equipment

*3

Through July 2022

*4

Through November 2020

*5

From July 2020

*6

Through July 2020

*7

From November 2020

*8

From July 2022

*9

For Vehicles With Usb Connection For Increased Charging Capacity
