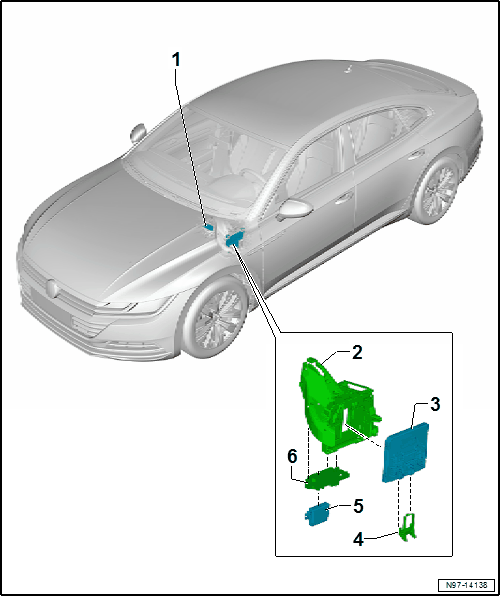

Component Location Overview - Control Modules
- Data Bus on Board Diagnostic Interface -J533-
- Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
- Bracket for Vehicle Electrical System Control Module -J519-
- Removing and Installing. Refer to BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Removing and Installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Guide for the Center Connector
- Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Overview - Parking Aid Control Module -J446- / Parallel Parking Assistance Control Module -J791-. Refer to OVERVIEW - PARKING AID / PARALLEL PARKING ASSIST / AUTONOMOUS PARKING .
- Bracket for Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
