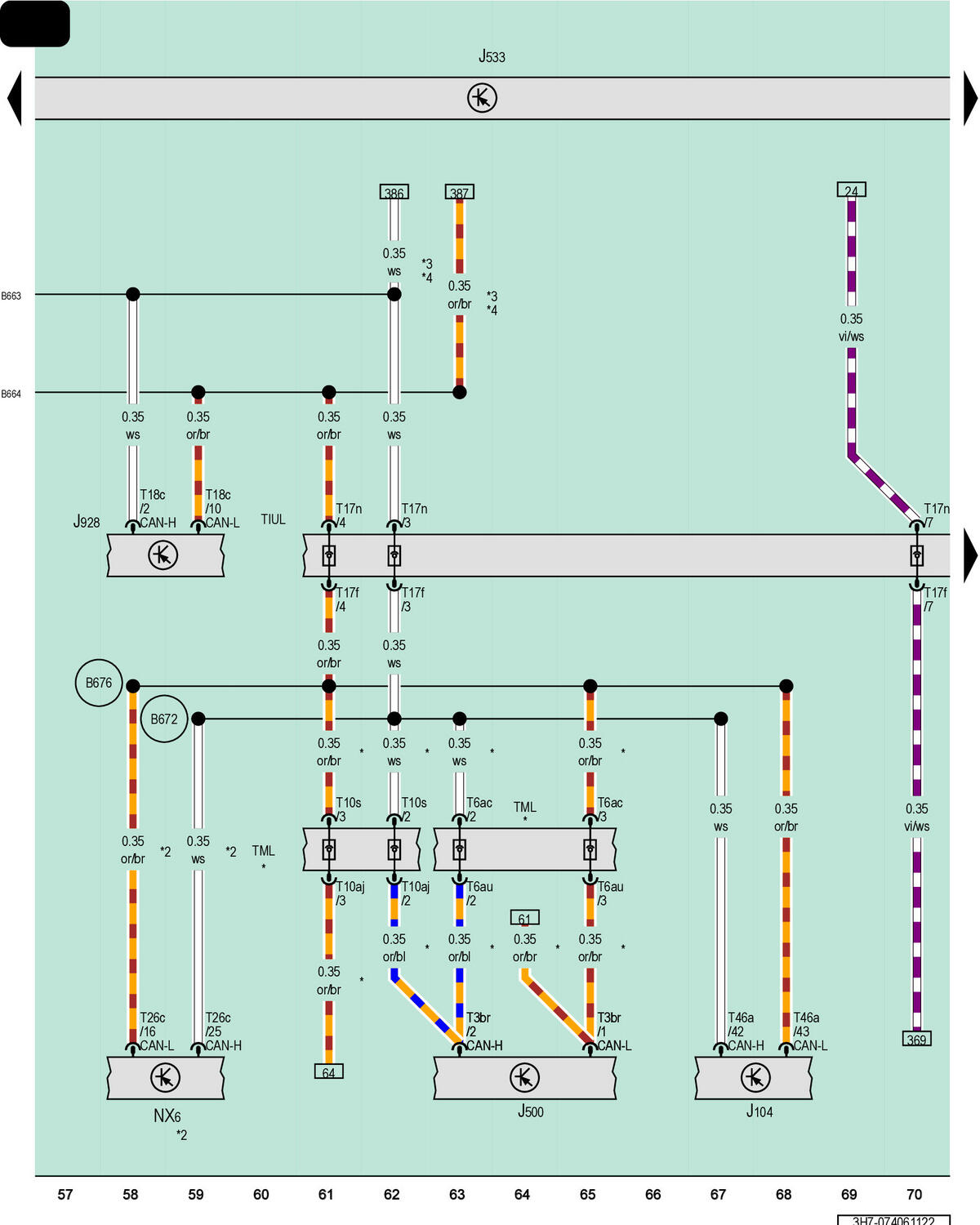

Abs Control Module, Power Steering Control Module, Data Bus On Board Diagnostic Interface, Peripheral Camera Control Module, Brake Booster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104

ABS Control Module

J500

Power Steering Control Module

J533

Data Bus on Board Diagnostic Interface

J928

Peripheral Camera Control Module

NX6

Brake Booster

T3br

3-Pin Connector, Black

T6ac

6-Pin Connector, Black

T6au

6-Pin Connector, Black

T10aj

10-Pin Connector, Black

T10s

10-Pin Connector, Black

T17f

17-Pin Connector, Brown

T17n

17-Pin Connector, Brown

T18c

18-Pin Connector, Black

T26c

26-Pin Connector, Black

T46a

46-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

TML

Coupling Point in Engine/Motor Compartment, Left

B663

Suspension Sensor CAN Bus High Connection (in Main Wiring Harness)

B664

Suspension Sensor CAN Bus Low Connection (in Main Wiring Harness)

B672

Suspension/Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)

B676

Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)

*

Depending on Equipment

*2

For Vehicles with Electromechanical Brake Booster

*3

For Vehicles with Top Sport Equipment

*4

From June 2021
