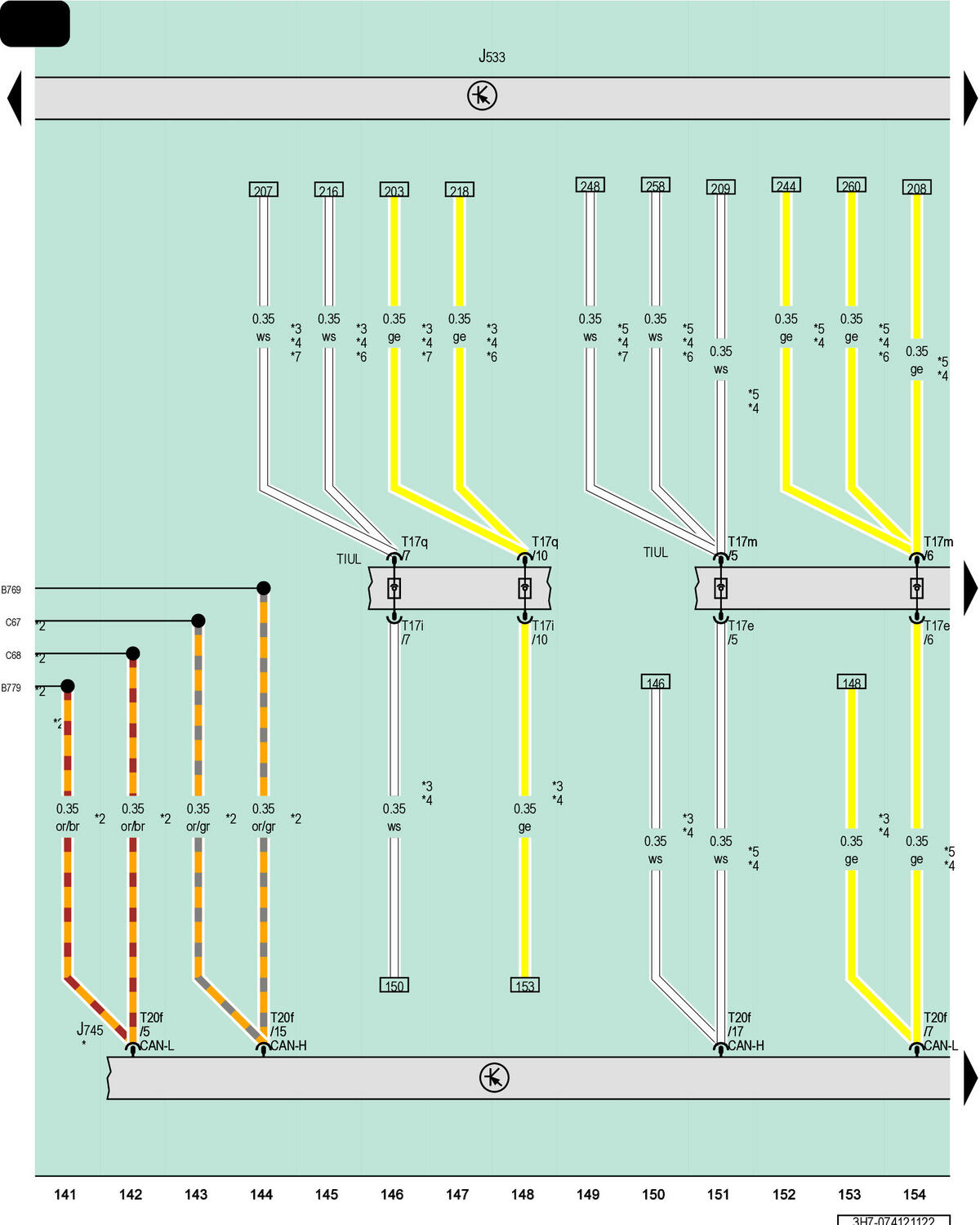

Data Bus On Board Diagnostic Interface, Cornering Lamp And Headlamp Range Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J745

Cornering Lamp and Headlamp Range Control Module

T17e

17-Pin Connector, Black

T17i

17-Pin Connector, White

T17m

17-Pin Connector, Black

T17q

17-Pin Connector, White

T20f

20-Pin Connector, Brown

TIUL

Coupling Point in Interior, Bottom Left

B769

Diagnostic CAN Bus High Connection 2 (in Main Wiring Harness)

B779

Diagnostic CAN Bus Low Connection 2 (in Main Wiring Harness)

C67

CAN Bus High Connection (in Headlamp Wiring Harness)

C68

CAN Bus Low Connection (in Headlamp Wiring Harness)

*

Refer to Applicable Wiring Diagram

*2

Depending on Equipment

*3

For RHD Vehicles

*4

For Vehicles with Near Field Communication

*5

For LHD Vehicles

*6

For Vehicles with Peripheral Camera

*7

For Vehicles without Peripheral Camera
