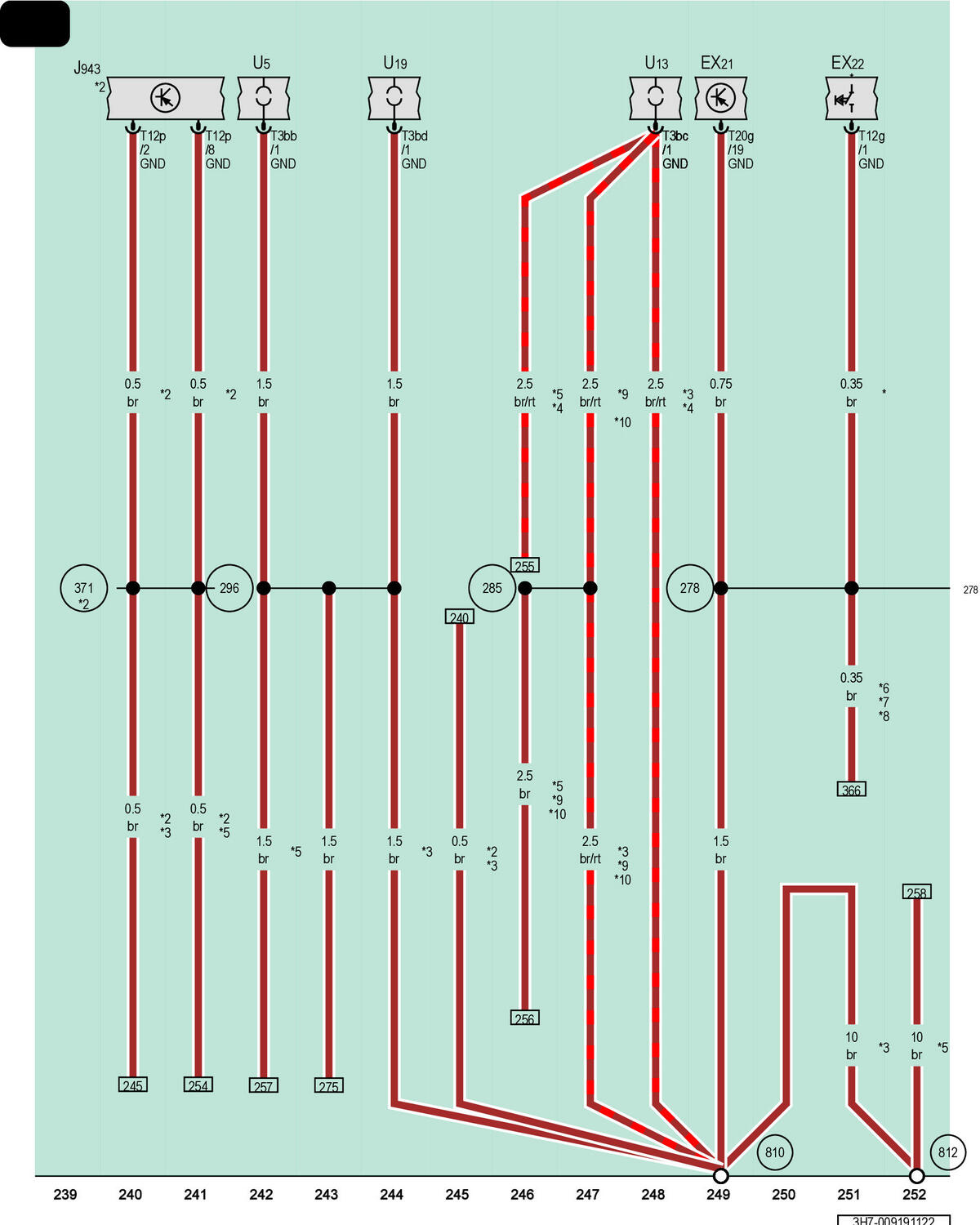

Heater And A/C Controls, Center Instrument Panel Switch Module, Engine Sound Generator Control Module, 12 V Socket, Converter With Socket, 12 V-230 V, 12 V Socket 3
EX21
Heater and A/C Controls
EX22
Center Instrument Panel Switch Module
J943
Engine Sound Generator Control Module
T3bb
3-Pin Connector, Naturally Cloudy
T3bc
3-Pin Connector, Black
T3bd
3-Pin Connector, Naturally Cloudy
T12g
12-Pin Connector, Black
T12p
12-Pin Connector, Black
T20g
20-Pin Connector, Black
U5
12 V Socket
U13
Converter with Socket, 12 V-230 V
U19
12 V Socket 3
278
Ground Connection 4 (in Interior Wiring Harness)
285
Ground Connection 7 (in Interior Wiring Harness)
296
Ground Connection 11 (in Interior Wiring Harness)
371
Ground Connection 6 (in Main Wiring Harness)
810
Ground Connection on Left Center Instrument Panel Central Tube
812
Ground Connection on Auxiliary Heater Heating Element
*
Through June 2021
*2
For Vehicles with Hybrid Drive
*3
For LHD Vehicles
*4
For Vehicles Without Electronic Damping
*5
For RHD Vehicles
*6
From November 2018
*7
Diameter Depends on Equipment
*8
Through July 2022
*9
From July 2020
*10
For Vehicles with Electronic Damping
