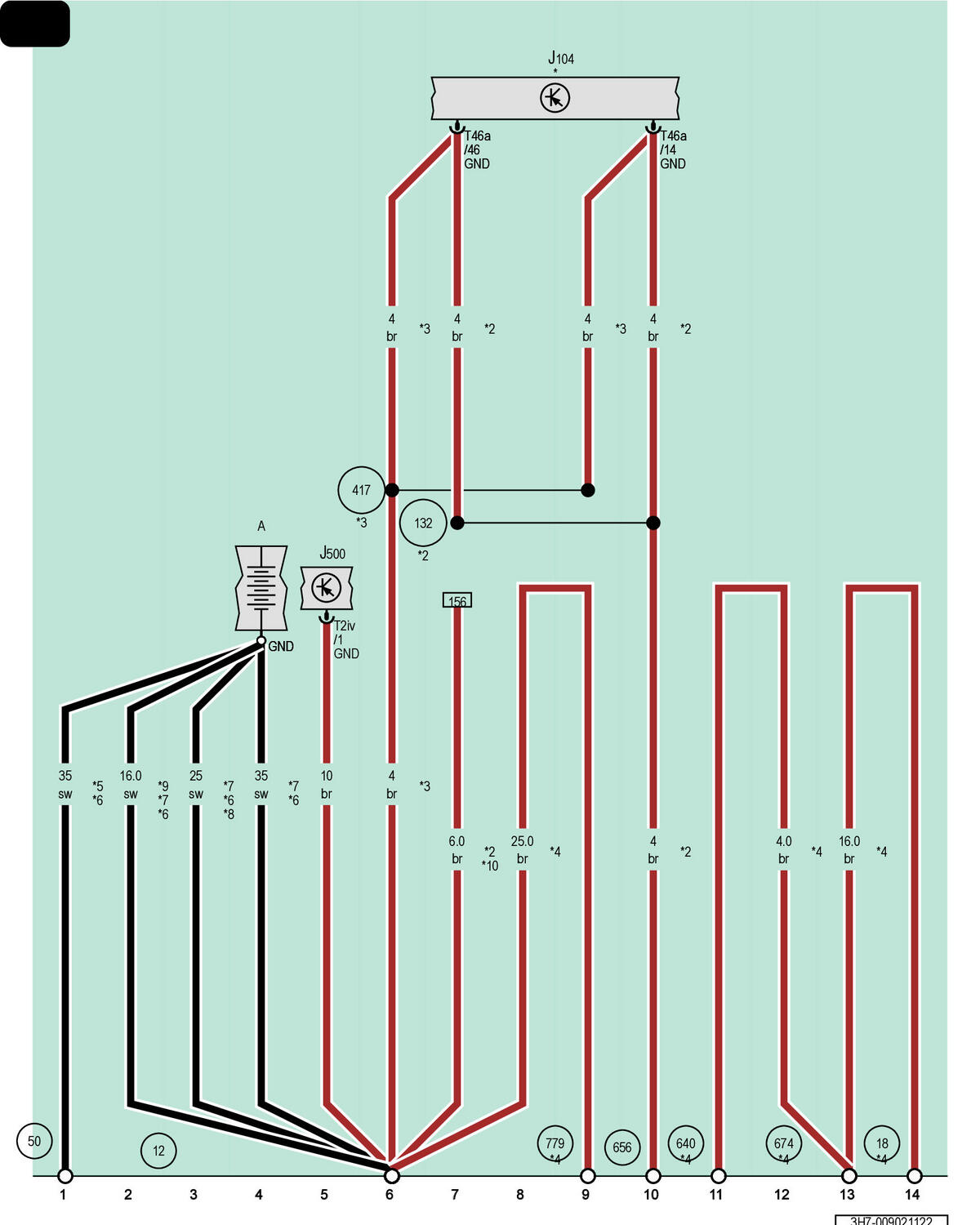

Battery, Abs Control Module, Power Steering Control Module
A
Battery
J104
ABS Control Module
J500
Power Steering Control Module
T2iv
2-Pin Connector, Black
T46a
46-Pin Connector, Black
12
Ground Connection in Engine/Motor Compartment, Left
18
Ground Connection on Cylinder Block
50
Ground Connection in Luggage Compartment, Left
132
Ground Connection 3 (in Engine/Motor Compartment Wiring Harness)
417
Ground Connection 9 (in Engine/Motor Compartment Wiring Harness)
640
Ground Connection 2 in Engine/Motor Compartment, Left
656
Ground Connection on Right Headlamp
674
Ground Connection 4 on Left Front Longitudinal Member
779
Electric Drive Power and Control Electronics Ground Connection 1
*
Refer to Applicable Wiring Diagram for ABS
*2
For LHD Vehicles
*3
For RHD Vehicles
*4
For Vehicles with Hybrid Drive
*5
For Vehicles with Battery in the Luggage Compartment
*6
Depending on Equipment
*7
For Vehicles with a Battery in the Engine/Motor Compartment
*8
Through July 2018
*9
From July 2018
*10
For Vehicles with Electromechanical Brake Booster
