Rear Side Window, Removing And Installing: Installing
-- Prepare the undamaged window for glazing. Refer to UNDAMAGED WINDOW GLASS, PREPARING FOR INSTALLATION .
-- Prepare the new window glass for glazing. Refer to NEW WINDOW GLASS, PREPARING FOR INSTALLATION .
-- Prepare the body flange for glazing. Refer to BODY FLANGE, PREPARING FOR INSTALLATION .
-- Installation Instructions. Refer to INSTALLATION INSTRUCTIONS FOR BONDED WINDOWS .
-- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
Recreate the additional sealant measures.

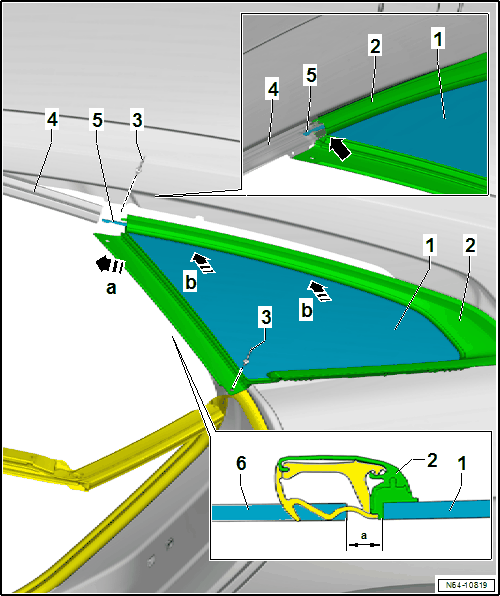

-- Remove the roof trim molding -4- slightly from the vehicle.
-- Slide the side window -1- using the centering pin -5- onto the roof trim molding -6- -arrow a-.
-- The roof trim molding -4- and side window trim molding -2- must rest on each other -arrow-.
-- Press the side window -1- with the roof trim molding -6- on the sheet metal flange -b arrows-.
-- Secure the pop rivets -3-.
-- After inserting, secure the side window from sliding with adhesive tape.
-- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
-- The rear door -6- must not be closed during this time.
-- Set -dimension a- = 10 mm to 12 mm between the rear door window -6- and side window -1-. Refer to REAR DOOR WINDOW, ADJUSTING .
