MECHATRONIC, Removing And Installing: Removing

Always make sure that no dirt can get into an >>open<< transmission.

Dirt entering can cause a transmission failure especially with >>open<< Mechatronic and/or oil pump.

The Mechatronic can get stuck on the alignment pins when the transmission is very warm. Let the transmission cool down.

-- Remove the transmission fluid pan. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .

-- Loosen and remove the screws -arrows- in a diagonal sequence.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully remove the mechatronic -1-.

Holding and Carrying the Mechatronic

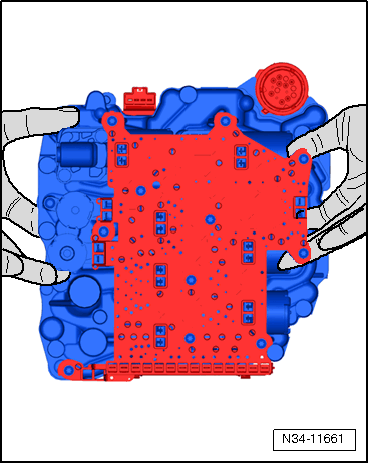

Fig 1: Holding and Carrying the Mechatronic

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Dual-Clutch Transmission Mechatronic -J743-.

Store the Mechatronic properly

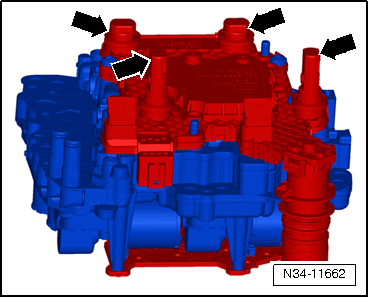

Fig 2: Store Mechatronic Properly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Store the Mechatronic so that the sensors -arrows- face upward.
