Overview - Transmission Fluid Circuit

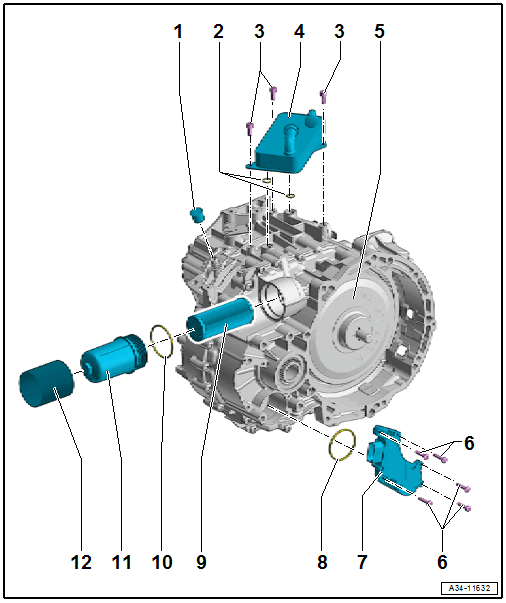

Fig 1: Exploded View Of Transmission Fluid Circuit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bleeder Cap
O-Rings
- Replace
Bolt
- 20 Nm
Transmission Fluid Cooler
- Removing and Installing. Refer to TRANSMISSION FLUID COOLER, REMOVING AND INSTALLING .
Transmission
- Removing and Installing. Refer to TRANSMISSION, REMOVING AND INSTALLING .
Bolt
- 8 Nm + 45°
- Replace
Engine for Transmission Fluid Auxiliary Hydraulic Pump 1 -V475-
- Removing and Installing. Refer to ENGINE FOR Transmission Fluid Auxiliary Hydraulic Pump 1 - V475-, REMOVING AND INSTALLING .
Seal
- Replace
Transmission Fluid Filter
- Notes for oil change and filter replacement. Refer to GENERAL INFORMATION .
- Removing and Installing. Refer to TRANSMISSION FLUID FILTER, REMOVING AND INSTALLING .
O-Ring
- Replace
- Coat with gear oil
Filter Housing
- 50 Nm
Heat Shield
