Bevel Box, Installing

NOTE:

Refer to "Bevel Box, Removing" BEVEL BOX, REMOVING to get a list of the special tools needed.

Replace self-locking bolts and nuts after removing them.

Replace the bolts that were tightened with an additional turn after removing them.

Install any cable ties that were loosened or cut off during removal at their same location.

Installing

Install in the reverse order of removal while noting the following:

-- Coat the splines on transmission differential with Lubricating Grease for Clutch Plate Splines.

-- Insert the bevel box and press it against the transmission as far as the stop.

NOTE:

If the tooth position is incorrect (the bevel box cannot be pressed against the transmission), rotate at the flange shaft.

-- If the tooth position is correct and it is guided centered, the bevel box slides against the transmission all the way.

-- First tighten the bevel box with the new bolts -arrows- by hand and then finish tightening. Tightening specification. Refer to TRANSMISSION TIGHTENING SPECIFICATIONS .

Fig 1: Identifying Bevel Box Bolts

GWWN37-10324

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the transmission mount. Pay attention to the component location and tightening sequence for the bolts. Refer to TRANSMISSION SUPPORT TO ENGINE AND BEVEL BOX .

Vehicles with Gasoline Engine

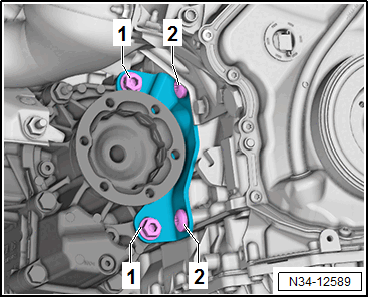

Fig 2: Transmission Support to Engine and Bevel Box

GWWN34-12589

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The next illustration shows the bevel box with the stub shaft instead of the flange shaft.

Vehicles with diesel engines

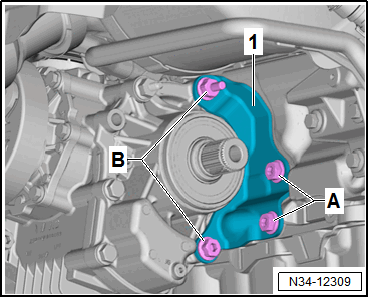

Fig 3: Bracket Version 1 for Bevel Box

GWWN34-12309

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Fasten the flange shaft with a new bolt. Tightening specification: OVERVIEW - BEVEL BOX .

Fig 4: Removing The Countersunk Bolt Using T10107A

GWWN34-11121

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the driveshaft on the bevel box.

NOTE:

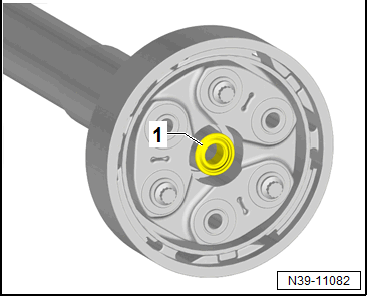

Seal in driveshaft flange -1- must not be damaged when removing and installing the bevel box. Replace the driveshaft if it is damaged.

GWWN39-11082

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

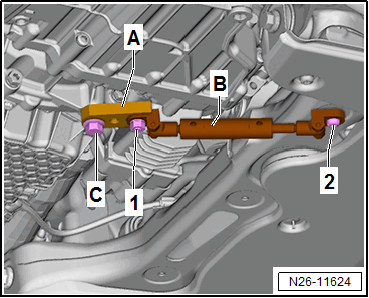

-- Guide the Engine Support:T50015 -A- bevel box and driveshaft together by turning the spindle.

GWWN26-11624

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

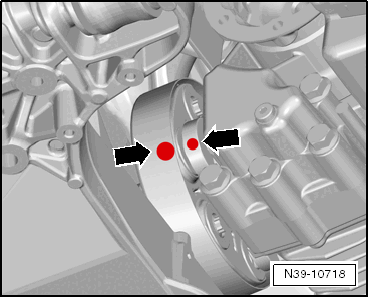

-- When guiding together pay attention that the markings -arrows- on the flexible disc align with the output flange of the bevel box.

Fig 5: Mark Position Of Driveshaft

GWWN39-10718

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Engine Support:T50015 .

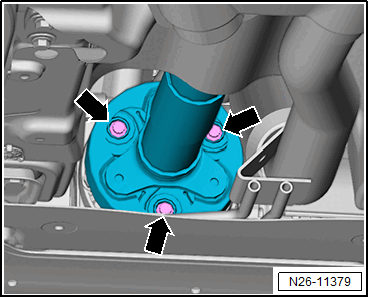

-- Install the driveshaft on the bevel box -arrows-. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

GWWN26-11379

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the driveshaft heat shield, if equipped.

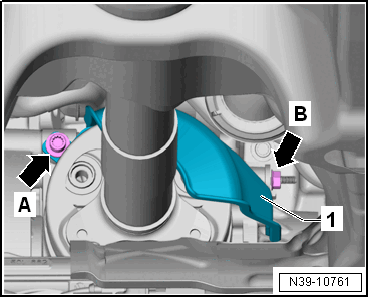

Fig 6: Driveshaft Heat Shield

GWWN39-10761

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

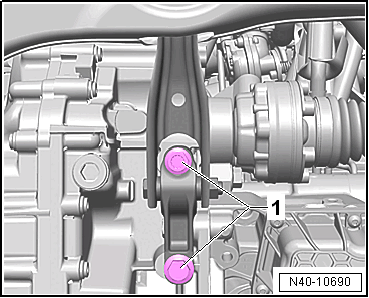

-- Install the pendulum support with new bolts -1- on the transmission. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .

GWWN40-10690

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the exhaust system front section on the engine. Refer to OVERVIEW - MUFFLER, PASSAT, ARTEON .

-- Install the right drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

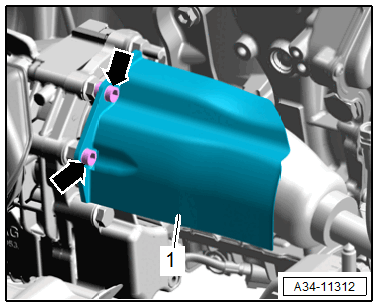

-- Install the drive axle heat shield -1-, if equipped, on the bevel box (-arrows-). Refer to Drive Axle .

Fig 7: AWD:

GWWA34-11312

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Further installation is performed in reverse order of the removal.

-- Check the gear oil level in bevel box. Refer to GEAR OIL, CHECKING LEVEL .

-- After installation check the oil level in the transmission. Refer to TRANSMISSION FLUID LEVEL, CHECKING .

-- Install the noise insulation. Refer to Noise Insulation .
