Measurement Preparations, Axle Alignment Without Driver Assistance Systems

Special tools and workshop equipment required

• Wheel Alignment Computer:V.A.G 1813F

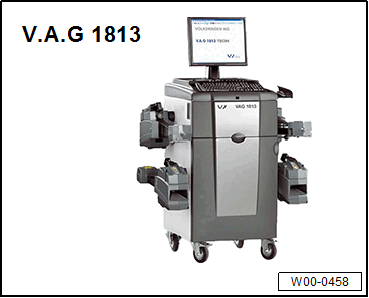

  Fig 1: Identifying Wheel Alignment Computer V. A. G 1813

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Brake Pedal Actuator:V.A.G 1869/2  .
  Fig 2: Identifying Brake Pedal Actuator

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Insert Tool - 18mm:T10179
  Fig 3: Insert Tool - 18mm

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shock Absorber Set:T10001
  Fig 4: 18 mm socket from the Shock Absorber Set

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The lateral run-out of the rims must be balanced: otherwise, the measurements will be falsified:

A correct toe-in adjustment will not be possible without performing lateral run-out compensation!

Follow the operating instructions provided by the manufacturer of the alignment equipment.

-- Carry out wheel run-out compensation.

-- Insert the Brake Pedal Actuator:V.A.G 1869/2  .

-- Actuate the brake pedal using brake pedal actuator.
