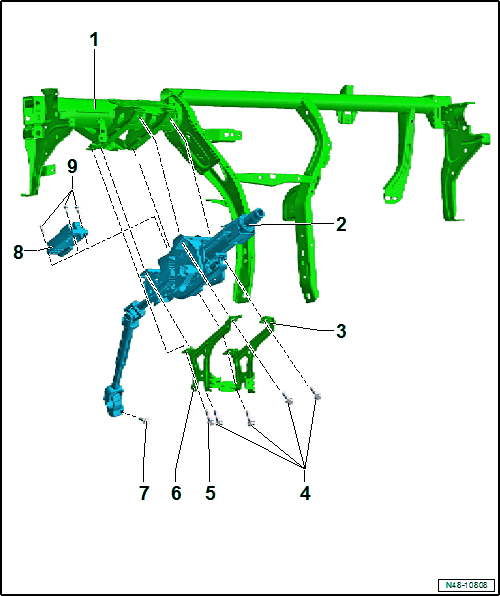

Overview - Steering Column, Version 1
The overview shows the left side of the vehicle as an example
CAUTION:
Always replace self-locking nuts.
Always replace corroded bolts/nuts.
If bolts or screws are tightened with an additional rotation angle, always replace.
- Instrument Panel Central Tube
- Steering Column
- Removing and Installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- The steering column must be engaged on the instrument panel central tube mounting bracket when installing (assembly aid).
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Right Bracket
- For the knee airbag
- Bolt
- Note the tightening sequence
- Always replace after removing
- 20 Nm
- Bolt
- Always replace after removing
- 20 Nm
- Left Bracket
- For the knee airbag
- Bolt
- Always replace after removing
- 20 Nm +90°
- Electronic Steering Column Lock Control Module -J764-
- Removing and Installing. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 3
- 6 Nm
