Steering Gear, Removing And Installing: Removing

The following describes for example the removing and installing on the left side of the vehicle

-- Turn the steering wheel in the straight position and remove the ignition key so that the steering wheel lock engages.

-- Switch the ignition off and open the driver door so the steering wheel lock engages.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Fold back the carpet.

-- Remove the bolt -arrow- from the universal joint -1-, and then remove the universal joint in the -direction of the arrow-.

GWWN48-10715Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
CAUTION:

Damage to the steering gear due to incorrect procedure. If the universal joint is separated from the steering gear do not perform the following procedures:

- Connect the battery.

- Activate drive ready mode.

- Turn the steering gear.

- Turn the steering column.

-- Loosen the wheel bolts.

-- Raise the vehicle.

-- Remove the wheels.

-- Remove the lower noise insulation. Refer to OVERVIEW - NOISE INSULATION .

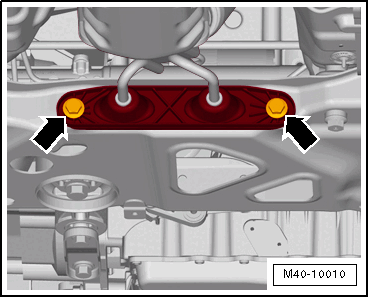

-- Remove the exhaust system bracket from the subframe -arrows-.

Fig 1: Identifying Exhaust System Bracket (Suspended Mount) Bolts
GWWM40-10010Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the pendulum support bolts -1-.

GWWN40-10690Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

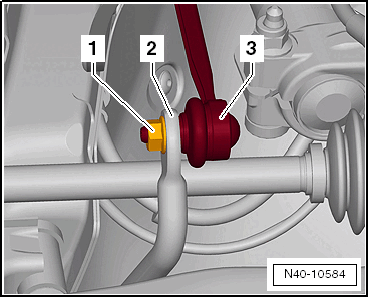

-- Remove the hex nut -1- from the right and left coupling rod -3-.

GWWN40-10584Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coupling rod -3- from the stabilizer bar -2- on the left and right sides.

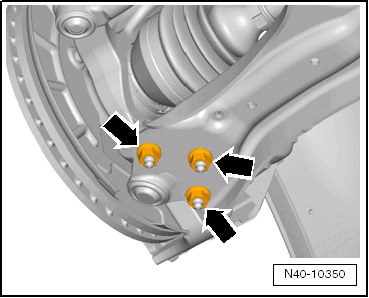

-- Remove the nuts -arrows- on the left and right side of the vehicle.

Fig 2: Identifying Nuts -Arrows- On Left And Right Side Of Vehicle, Removal
GWWN40-10350Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control arm from the ball joint.

-- Loosen the nut from the tie rod end, but do not remove it yet.

Fig 3: Identifying Nut Of Track Rod Ball Joint
GWWM40-10017Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
CAUTION:

To protect the thread, screw the nut on the pin several turns.

-- Remove the tie rod end from the wheel bearing housing and remove the nut.

  1. Puller - Ball Joint:T10187

Vehicles with Level Control System Sensor

GWWN40-10689Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

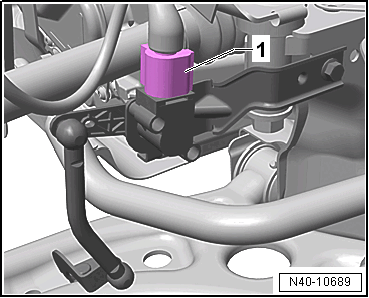

-- Disconnect the connector -1- from the Left Front Level Control System Sensor -G78- or Right Front Level Control Sensor -G289-.

Continuation for all vehicles

GWWN48-10709Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- If equipped, disconnect the connector -1- for the Oil Level Thermal Sensor -G266-.

-- If equipped, disconnect the connector -2- from the After-Run Coolant Pump -V51-. To do so, open the catch -3- in the -direction of the arrow- and release the connector.

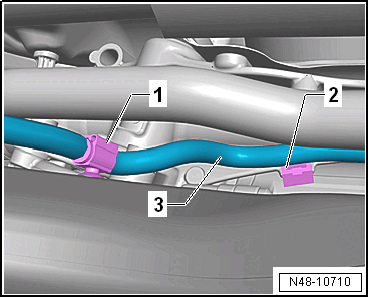

-- Remove the clips -1- and -2- for the wiring harness -3- from the subframe and the steering gear.

GWWN48-10710Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

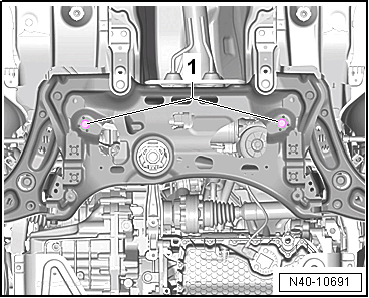

-- Remove the steering gear bolts -1-.

GWWN40-10691Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

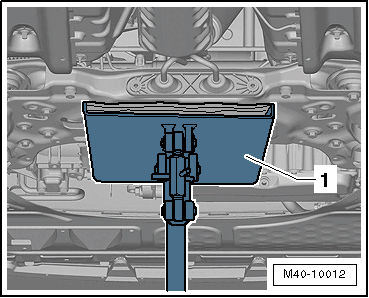

-- Position the Engine and Gearbox Jack:VAS 6931  -1- under the subframe.

Fig 4: Identifying Engine/Gearbox Jack
GWWM40-10012Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Secure the subframe (refer to SUBFRAME, SECURING ) and lower it approximately 10 cm.

GWWN48-10711Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

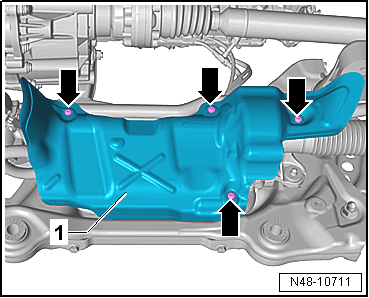

Vehicles with Long Heat Shield

-- Remove the bolts -arrows- and remove the heat shield -1- from the steering gear.

NOTE:

Different heat shields -1- are installed depending on the engine. On some engine versions, the connectors for the steering gear are accessible without having to remove the heat shield.

GWWN48-10801Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

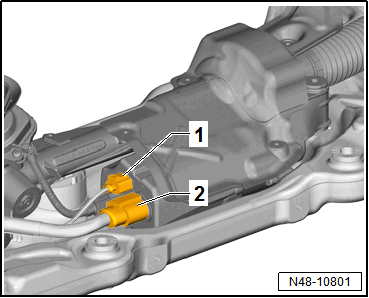

-- Disconnect the connectors -1- and -2- from the steering gear.

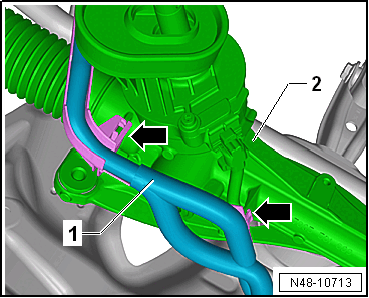

-- Unclip the wiring harness -1- from the steering gear -2- -arrows-.

GWWN48-10713Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
GWWA40-10657Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

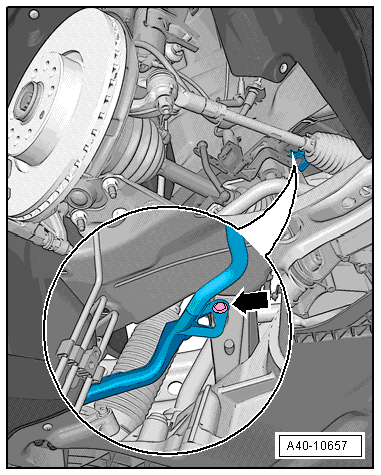

-- Remove the expanding clip -arrow-.

-- Lower the subframe with the Engine and Gearbox Jack:VAS 6931  .

-- Pry the steering gear off of the subframe, for example, using a large screwdriver and remove it toward the rear.

GWWN48-10803Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

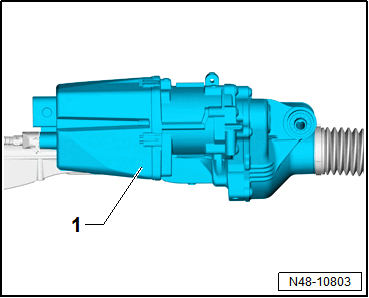

-- Set the steering gear down as shown.

Avoid damage to the control module -1-.
