BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING: Removing

-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Disengage fuse panel C and push it aside. Refer to RELAY AND FUSE PANEL BEHIND INSTRUMENT PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector from the Front Parking Aid Warning Buzzer -H22-.

-- Disconnect the connector from the Vehicle Electrical System Control Module -J519-. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .

-- Disconnect the connector from the Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-.

-- Remove the diagnostic connector by releasing the locking mechanism on the bracket and removing the bracket outward.

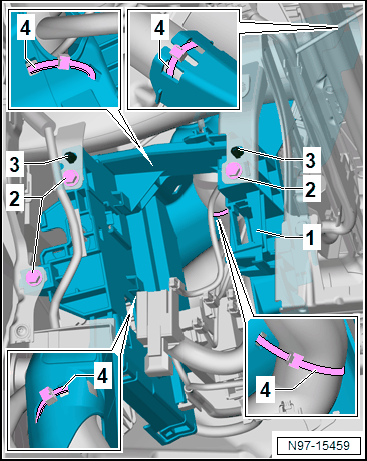

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the bracket for the Vehicle Electrical System Control Module -J519- -1- so far out from the instrument panel crossmember toward the front, until the alignment pins -3- are disengaged.

-- Cut through the cable ties -4-.

-- Free up the wiring harness on the mount.

-- Remove the Vehicle Electrical System Control Module -J519- bracket -1- toward the vehicle interior.
