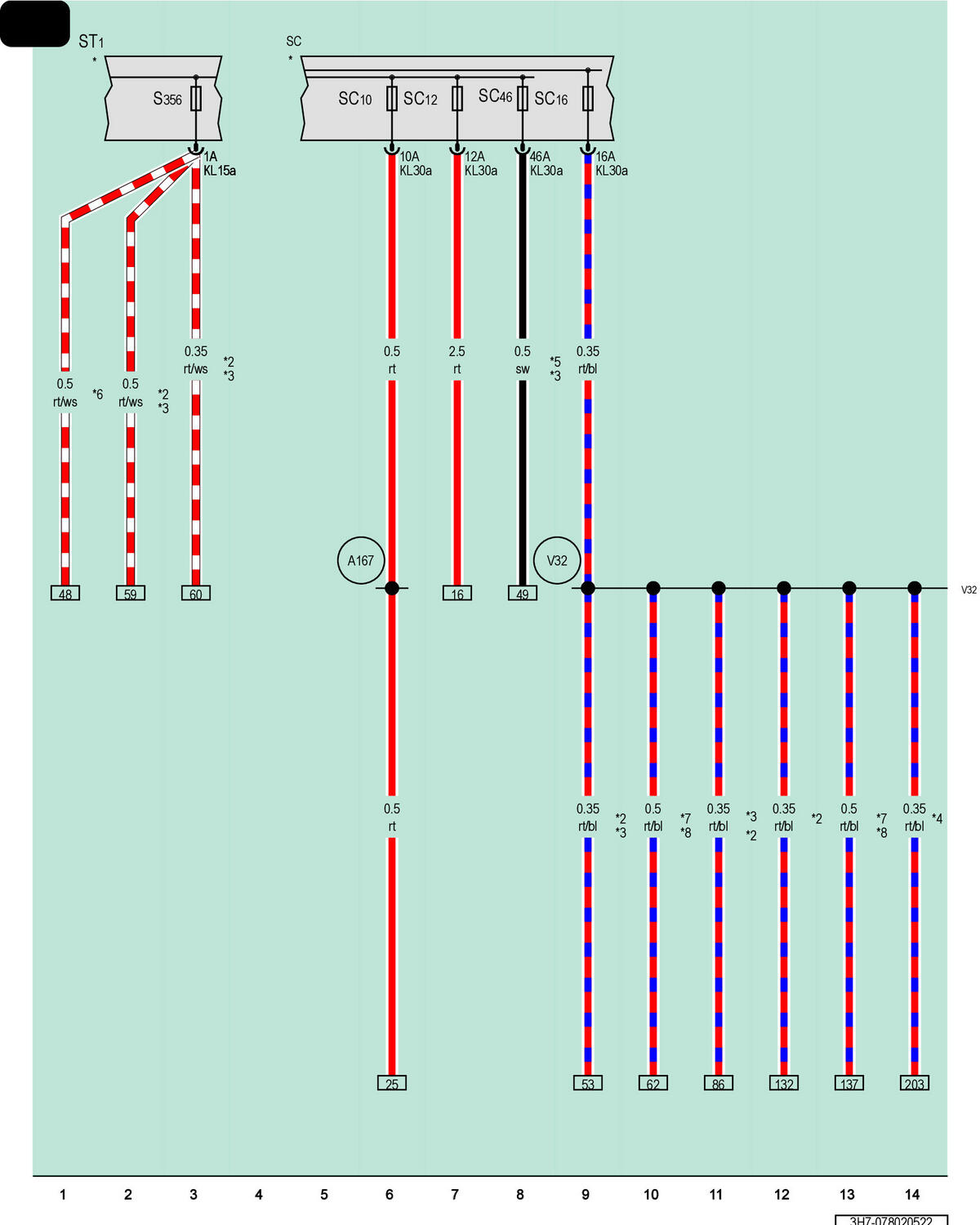

Fuse Panel C, Fuse Panel 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Sc

Fuse Panel C

St1

Fuse Panel 1

Sc10

Fuse 10 (On Fuse Panel C)

Sc12

Fuse 12 (On Fuse Panel C)

Sc16

Fuse 16 (On Fuse Panel C)

Sc46

Fuse 46 (On Fuse Panel C)

S356

Usb Charging Socket Fuse

A167

Positive Connection 3 (30A) (In Instrument Panel Wiring Harness)

V32

Positive Connection (30 (In Telephone Wiring Harness)

*

Refer To Applicable Wiring Diagram For Fuse Positions

*2

Depending On Equipment

*3

Through July 2022

*4

For Vehicles With Japan Equipment

*5

From July 2020

*6

Through July 2020

*7

From July 2022

*8

For Vehicles With Usb Connection For Increased Charging Capacity
