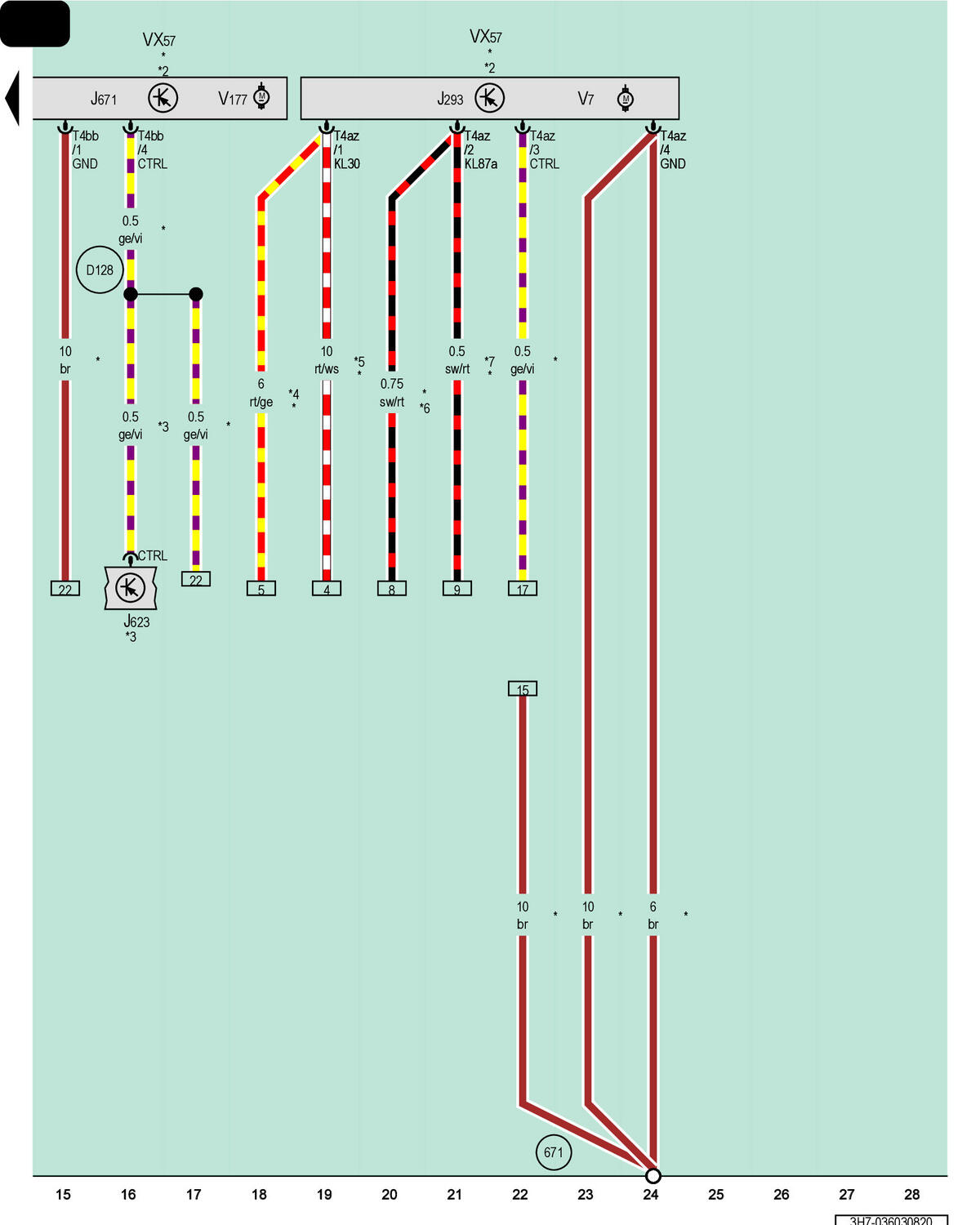

Engine/Motor Control Module, Radiator Fan
J293
Radiator Fan Control Module
J623
Engine/Motor Control Module
J671
Radiator Fan Control Module 2
T4az
4-Pin Connector, Black
T4bb
4-Pin Connector, Black
V7
Radiator Fan
VX57
Radiator Fan
V177
Radiator Fan 2
671
Ground Connection 1 on Left Front Longitudinal Member
D128
Connection 26 (in Engine/Motor Compartment Wiring Harness)
*
Depending on Equipment
*2
Pre-Wired Component
*3
Refer to Applicable Engine Wiring Diagram
*4
For Vehicles with a Battery in the Engine/Motor Compartment
*5
For Vehicles with Battery in the Luggage Compartment
*6
Through November 2017
*7
From November 2017
