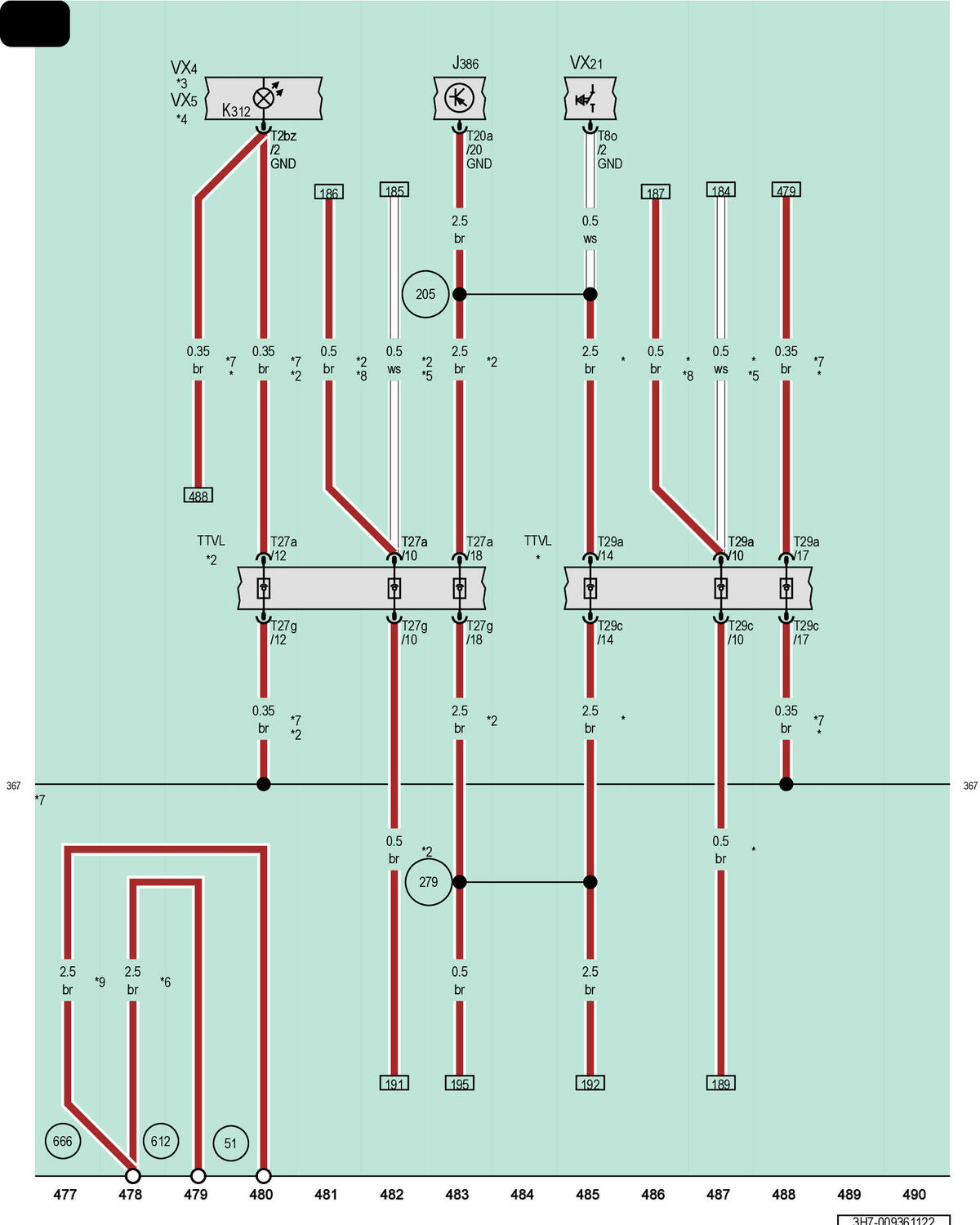

Driver Door Control Module, Driver Exterior Rearview Mirror, Driver Door Lock Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J386

Driver Door Control Module

K312

Lane Change Assistance Warning Lamp in Left Exterior Rearview Mirror

T2bz

2-Pin Connector, Black

T8o

8-Pin Connector, Black

T20a

20-Pin Connector, Black

T27a

27-Pin Connector, Black

T27g

27-Pin Connector, Black

T29a

29-Pin Connector, White

T29c

29-Pin Connector, White

TTVL

Left Front Door Coupling Point

VX4

Driver Exterior Rearview Mirror

VX5

Front Passenger Exterior Rearview Mirror

VX21

Driver Door Lock Unit

Ground Connection in Luggage Compartment, Right

205

Ground Connection (in Driver Door Wiring Harness)

279

Ground Connection 5 (in Interior Wiring Harness)

367

Ground Connection 2 (in Main Wiring Harness)

612

Ground Connection in Rear Lid, Center

666

Ground Connection on Roof, Right Rear

For Vehicles with Peripheral Camera

For Vehicles without Peripheral Camera

For LHD Vehicles

For RHD Vehicles

For Vehicles Without Near Field Communication

Sedan

From July 2019

For Vehicles with Near Field Communication

Sportback
