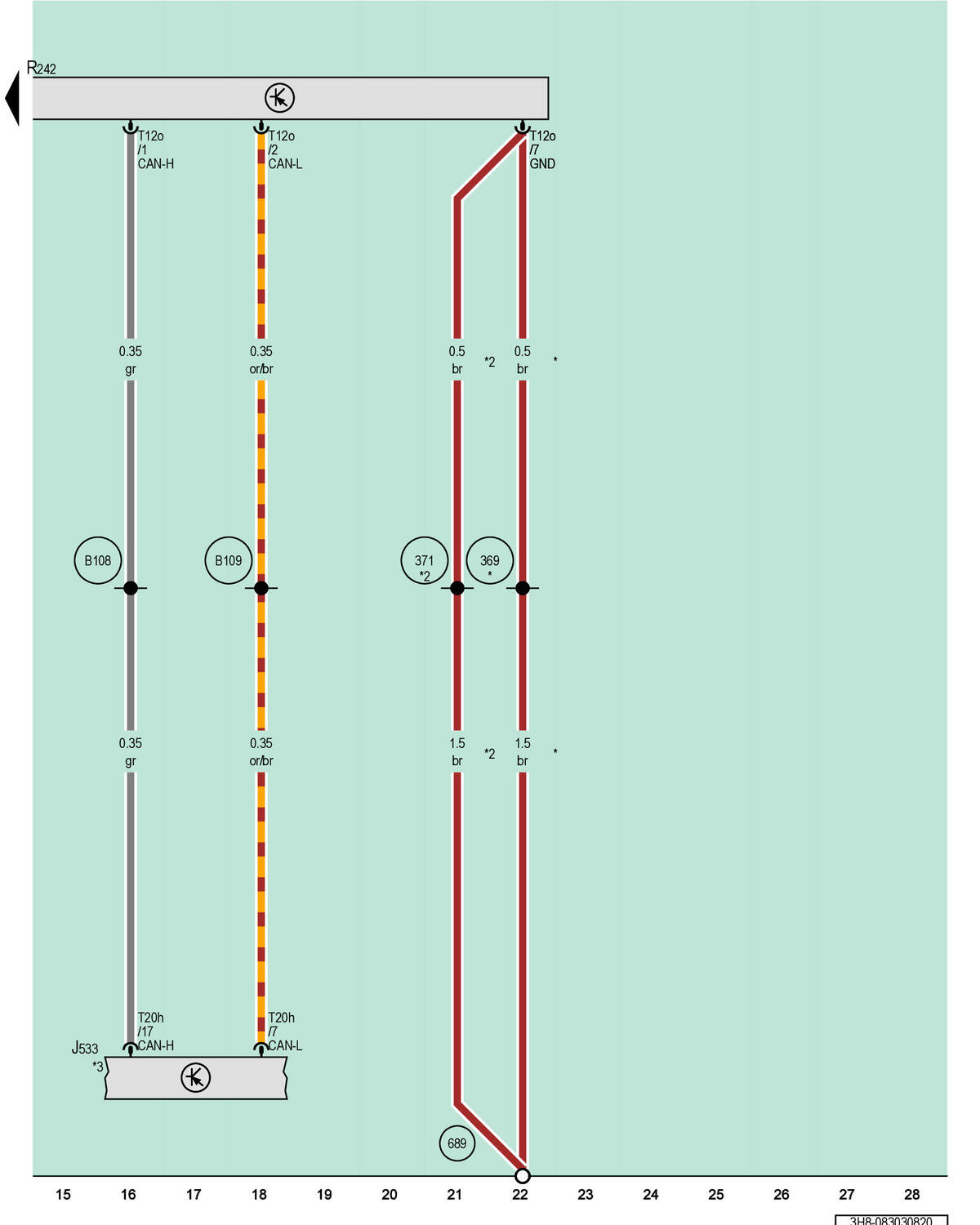

Data Bus On Board Diagnostic Interface, Driver Assistance Systems Front Camera

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

R242

Driver Assistance Systems Front Camera

T12o

12-Pin Connector, Brown

T20h

20-Pin Connector, Red

369

Ground Connection 4 (in Main Wiring Harness)

371

Ground Connection 6 (in Main Wiring Harness)

689

Ground Connection on Roof, Center Front

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

*

Sedan

*2

Sportback

*3

Refer to Applicable Wiring Diagram for Data Bus Networking
