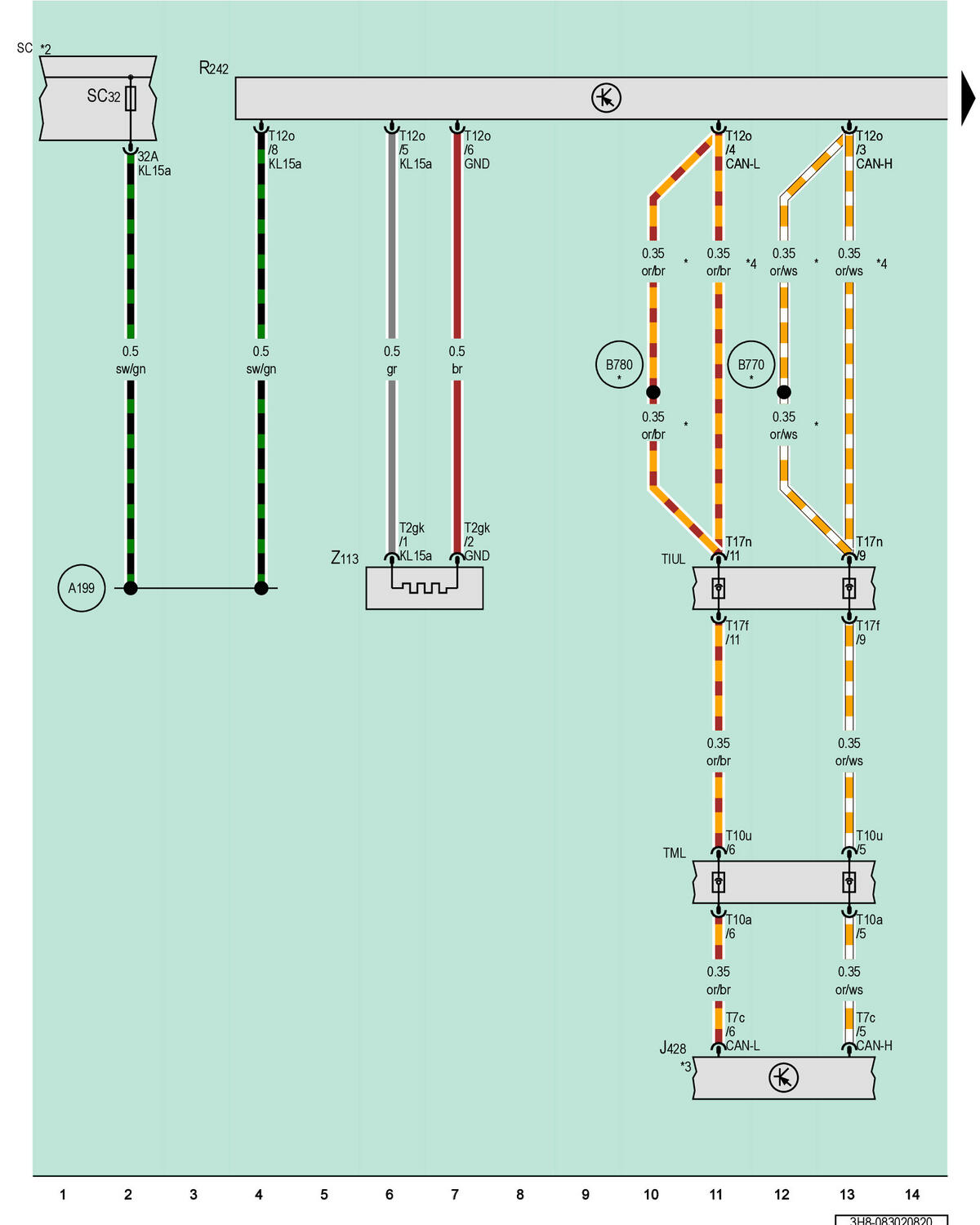

Control Module For Adaptive Cruise Control, Driver Assistance Systems Front Camera, Fuse Panel C, Window Defogger For Front Sensor System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J428

Control Module for Adaptive Cruise Control

R242

Driver Assistance Systems Front Camera

SC

Fuse Panel C

SC32

Fuse 32 (On Fuse Panel C)

T2gk

2-Pin Connector, Black

T7c

7-Pin Connector, Black

T10a

10-Pin Connector, Black

T10u

10-Pin Connector, Black

T12o

12-Pin Connector, Brown

T17f

17-Pin Connector, Brown

T17n

17-Pin Connector, Brown

TIUL

Coupling Point in Interior, Bottom Left

TML

Coupling Point in Engine/Motor Compartment, Left

Z113

Window Defogger for Front Sensor System

A199

Positive Connection 4 (15a) (in Instrument Panel Wiring Harness)

B770

Diagnostic CAN Bus High Connection 3 (in Main Wiring Harness)

B780

Diagnostic CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Sportback

*2

Refer to Applicable Wiring Diagram for Fuse Positions

*3

Refer to Applicable Wiring Diagram for Adaptive Cruise Control

*4

Sedan
