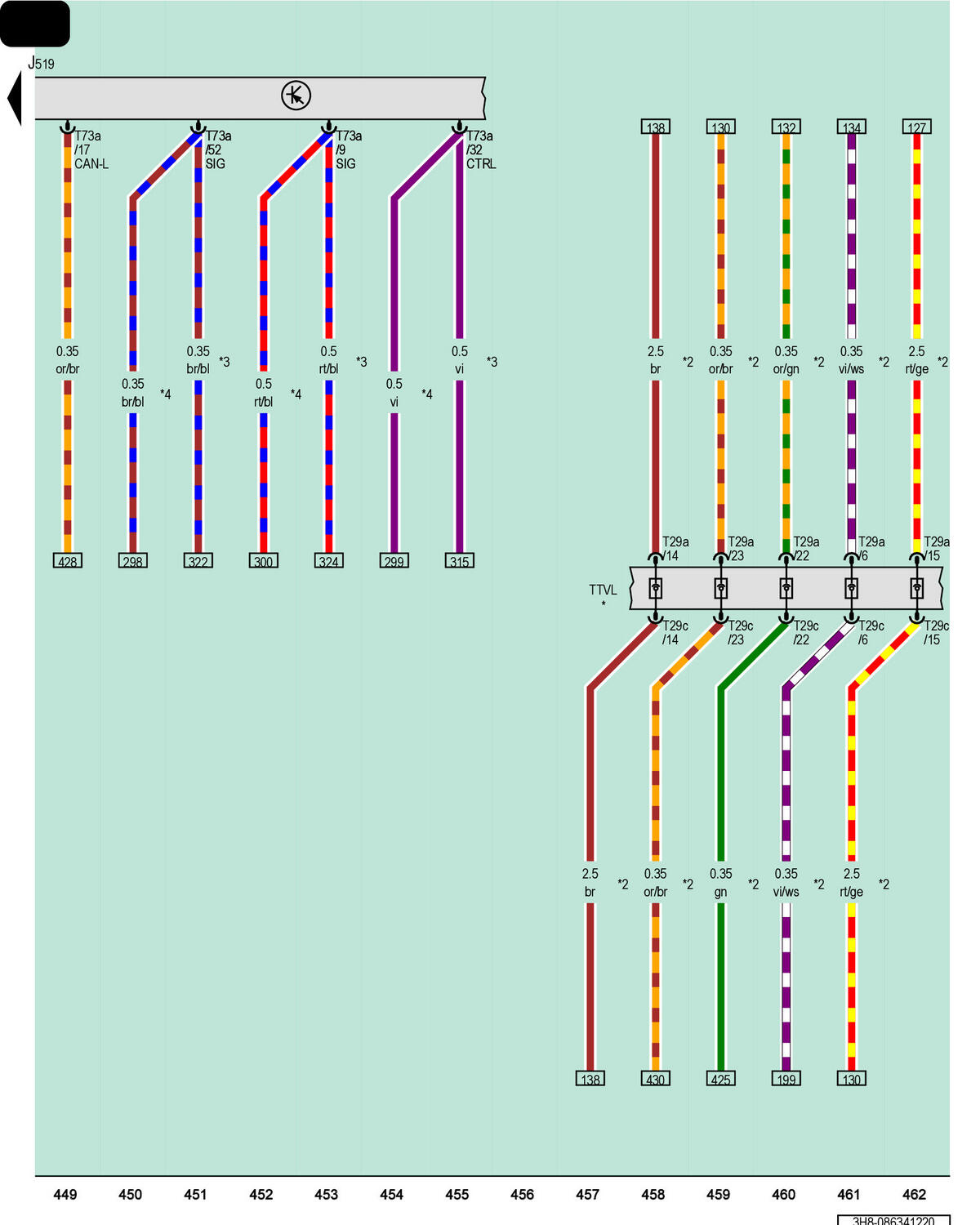

Vehicle Electrical System Control Module, Left Front Door Coupling Point

GWW3H8-086341220Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

T29a

29-Pin Connector, White

T29c

29-Pin Connector, White

T73a

73-Pin Connector, Black

TTVL

Left Front Door Coupling Point

For Vehicles without Peripheral Camera

*2

For Vehicles with Peripheral Camera

*3

Sedan

*4

Sportback
