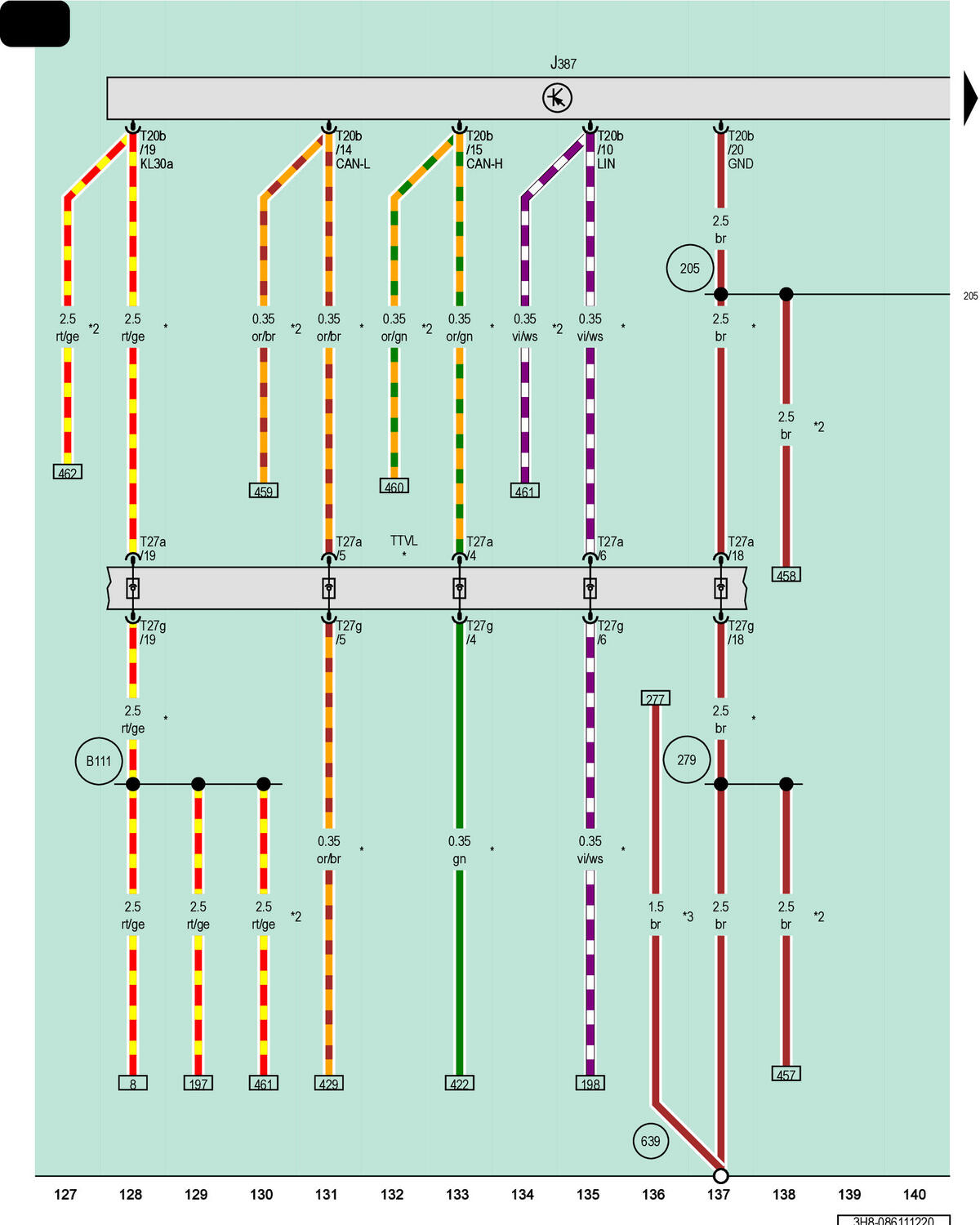

Front Passenger Door Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J387

T20b

20-Pin Connector, Black

T27a

27-Pin Connector, Black

T27g

27-Pin Connector, Black

TTVL

Left Front Door Coupling Point

205

Ground Connection (in Driver Door Wiring Harness)

279

Ground Connection 5 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

B111

Positive Connection 1 (30a) (in Interior Wiring Harness)

For Vehicles without Peripheral Camera

For Vehicles with Peripheral Camera

Sedan
