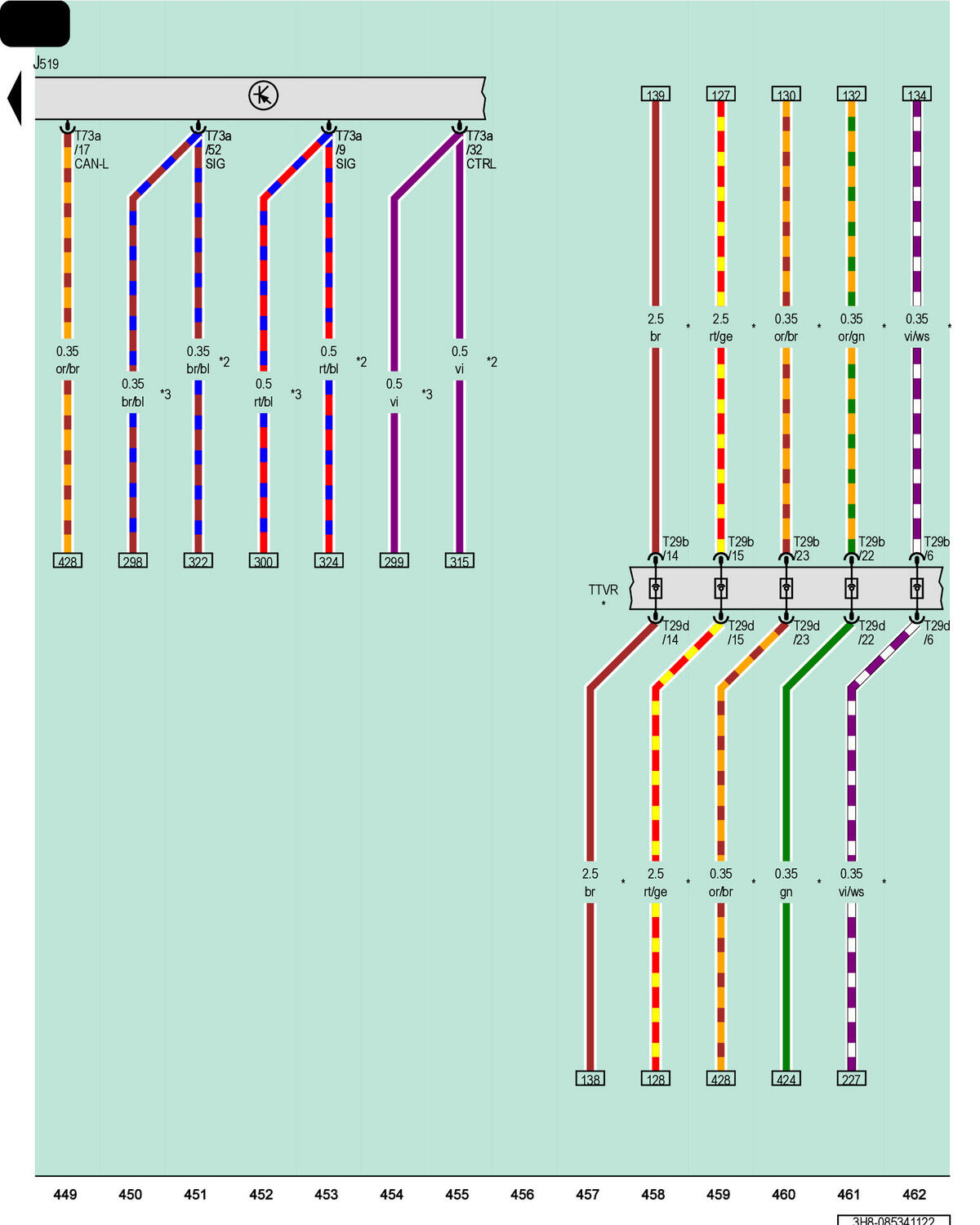

Vehicle Electrical System Control Module, Right Front Door Coupling Point

GWW3H8-085341122Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519

Vehicle Electrical System Control Module

T29b

29-Pin Connector, White

T29d

29-Pin Connector, White

T73a

73-Pin Connector, Black

TTVR

Right Front Door Coupling Point

For Vehicles with Peripheral Camera

*2

Sedan

*3

Sportback
